YASKAWA GA700 Series

Periodic Inspection and Maintenance
8
8.5 Replace the Drive
YASKAWA SIEPC71061705H GA700 Series Technical Manual 417
6. Put the wiring cover in its initial position. Put the cables through the holes that you cut out of the wiring
cover.

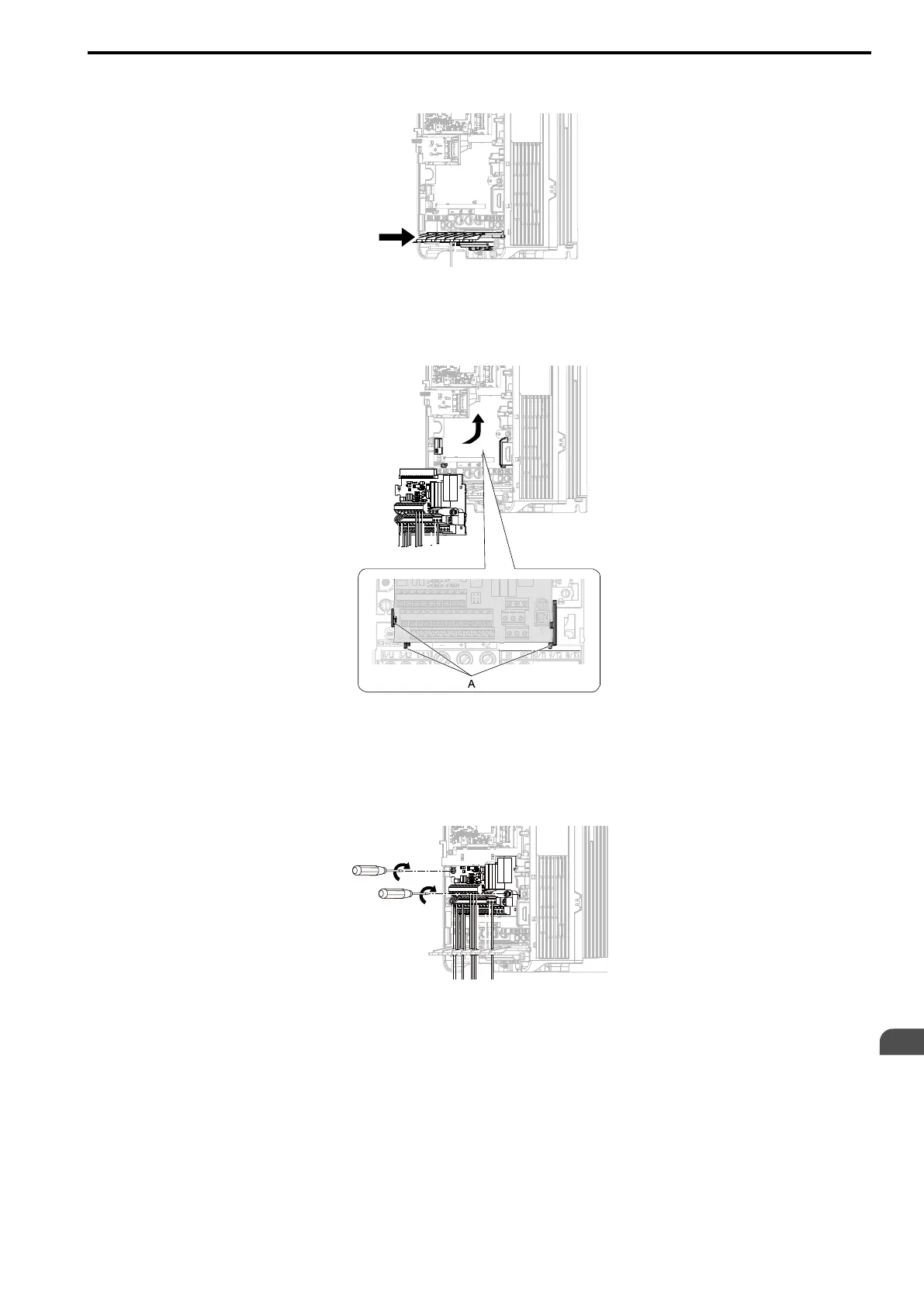

Figure 8.77 Reattach the Wiring Cover
■ Connect the Control Circuit Terminal Block
1. To put a wired control circuit terminal block in the drive, align it with the guides and move it straight up.
A - Guides
Figure 8.78 Put the Terminal Block into the Connector
2. Use M3 screws to safety the terminal block.
Tighten the screws to a correct tightening torque:
• M3 screws: 0.5 N∙m to 0.6 N∙m (4.4 lbf∙in to 5.3 lbf∙in)
Figure 8.79 Safety the Terminal Block
3. Install the front cover and the keypad to their initial positions.
4. Check o2-04 [Drive Model (KVA) Selection].
Note:
• When you save parameter information in a keypad that you installed before you replaced the terminal block, make sure that you use
that keypad to restore the parameter data.
• To reset the performance life monitors for the components, set o4-01 to o4-13 [Maintenance Period].
