YASKAWA V1000 Series

LED Operator Display Name Page
FbH Excessive PID Feedback 231
FbL PID Feedback Loss 231
GF Ground Fault 231
LF Output Phase Loss 232
LF2 Output Open Phase 232
oC Overcurrent 232
oFA00 Option Card Fault (port A) 233
oH Heatsink Overheat 233
oH1 Heatsink Overheat 233
PGo PG Disconnect(for Simple V/f with PG) 236
rH Dynamic Braking Resistor 236
rr Dynamic Braking Transistor 236
LED Operator Display Name Page
SEr Too Many Speed Search Restarts 236
STO Pull-Out Detection 236
UL3 Undertorque Detection 1 236
UL4 Undertorque Detection 2 237
UL5 Mechanical Weakening Detection 2 237
Uv1 Undervoltage 237
Uv2 Control Power Supply Undervoltage 237
Uv3 Soft Charge Circuit Fault 237
oS Overspeed(for Simple V/f with PG) 235
ov Overvoltage 235
PF Input Phase Loss 235
Note:
If faults CPF11 through CPF19 occur, the LED operator will display
or .
n
Minor Faults and Alarms
When a minor fault or alarm occurs, the ALM LED flashes and the text display shows an alarm code. A fault has occurred if the text remains lit and does
not flash.
Refer to Alarm Detection on page 238. An overvoltage situation, for example, can trigger both faults and minor faults. It is therefore important
to note whether the LEDs remain lit or if the LEDs flash.

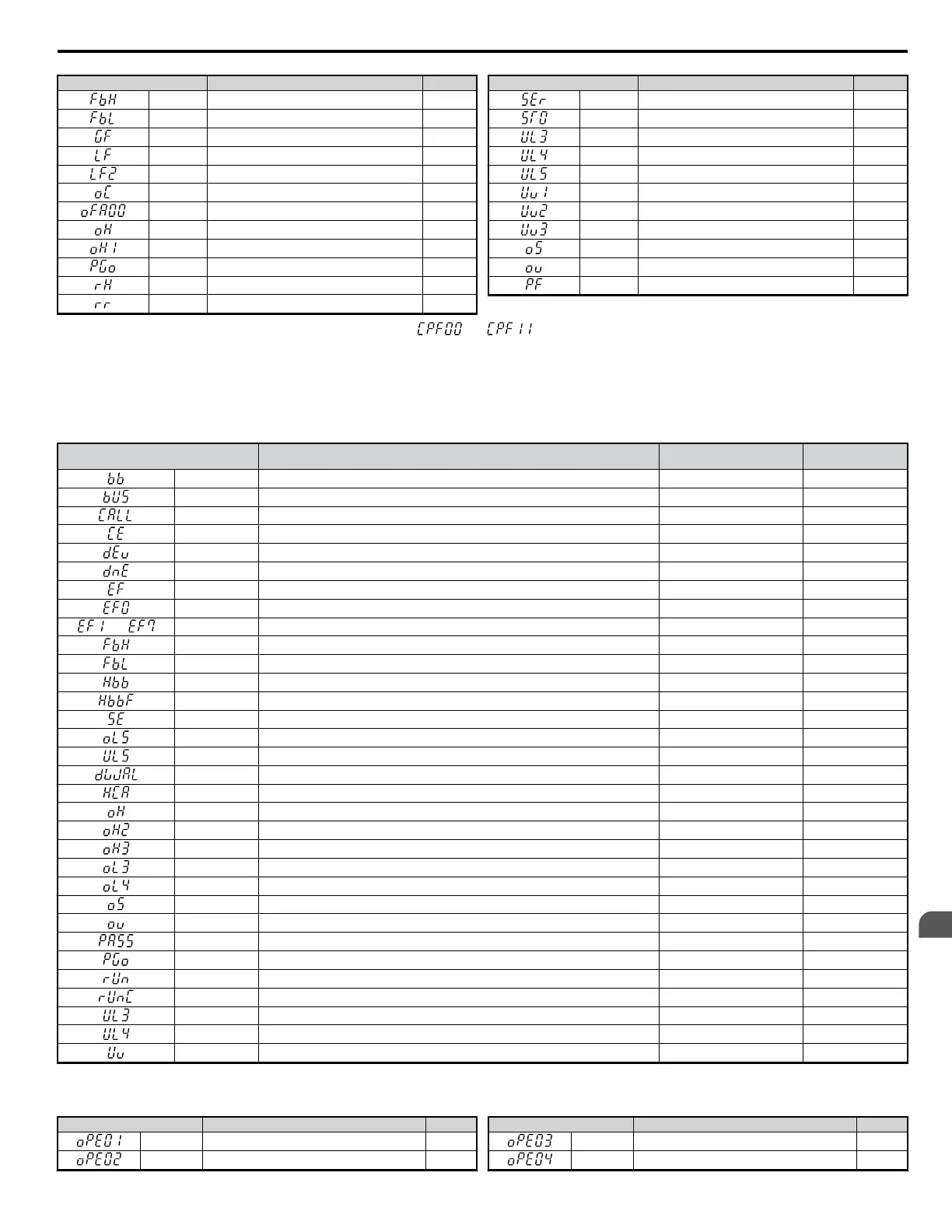

Table 6.5 Minor Fault and Alarm Displays
LED Operator Display Name
Minor Fault Output
(H2-oo = 10)
Page
bb Drive Baseblock No output 238
bUS Option Card Communications Error YES 238
CALL Serial Communication Transmission Error YES 238
CE MEMOBUS/Modbus Communication Error YES 238
dEv Excessive Speed Deviation (for Simple V/f with PG) YES 238
dnE Drive Disabled YES 239
EF Run Command Input Error YES 239
EF0 Option Card External Fault YES 239
to
EF1 to EF7 External Fault (input terminal S1 to S7) YES 239
FbH Excessive PID Feedback YES 239
FbL PID Feedback Loss YES 239
Hbb Hardwire Baseblock Signal Input YES 240
HbbF Hardwire Baseblock Signal Input YES 240
SE MEMOBUS/Modbus Test Mode Fault YES
oL5 Mechanical Weakening Detection 1 YES 234
UL5 Mechanical Weakening Detection 2 YES 237
dWAL DriveWorksEZ Alarm YES 231
HCA Current Alarm YES 240
oH Heatsink Overheat YES 240
oH2 Drive Overheat YES 240
oH3 Motor Overheat YES 240
oL3 Overtorque 1 YES 240
oL4 Overtorque 2 YES 241
oS Overspeed (for Simple V/f with PG) YES 241
ov Overvoltage YES 241
PASS MEMOBUS/Modbus Test Mode Complete No output 241
PGo PG Disconnect (for Simple V/f with PG) YES 241
rUn During Run 2, Motor Switch Command Input YES 241
rUnC Run Command Reset YES 241
UL3 Undertorque 1 YES 241
UL4 Undertorque 2 YES 242
Uv Undervoltage YES 242
n
Operation Errors
Table 6.6 Operation Error Displays
LED Operator Display Name Page
oPE01 Drive kVA Setting Error 243
oPE02 Parameter Setting Range Error 243
LED Operator Display Name Page
oPE03 Multi-Function Input Setting Error 243
oPE04 Terminal Board Mismatch Error 243
6.3 Drive Alarms, Faults, and Errors
YASKAWA ELECTRIC SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual (Preliminary)
227
6
Troubleshooting
