3–4 Chapter 3: Memory Blocks in Cyclone IV Devices
Overview
Cyclone IV Device Handbook, November 2011 Altera Corporation
Volume 1
Figure 3–1 shows how the wren and byteena signals control the RAM operations.
When a
byteena bit is deasserted during a write cycle, the old data in the memory
appears in the corresponding data-byte output. When a
byteena bit is asserted during
a write cycle, the corresponding data-byte output depends on the setting chosen in
the Quartus
®
II software. The setting can either be the newly written data or the old
data at that location.
1 Byte enables are only supported for True Dual-Port memory configurations when
both the PortA and PortB data widths of the individual M9K memory blocks are
multiples of 8 or 9 bits.
Packed Mode Support
Cyclone IV devices M9K memory blocks support packed mode. You can implement
two single-port memory blocks in a single block under the following conditions:
■ Each of the two independent block sizes is less than or equal to half of the M9K
block size. The maximum data width for each independent block is 18 bits wide.
■ Each of the single-port memory blocks is configured in single-clock mode. For
more information about packed mode support, refer to “Single-Port Mode” on
page 3–8 and “Single-Clock Mode” on page 3–15.

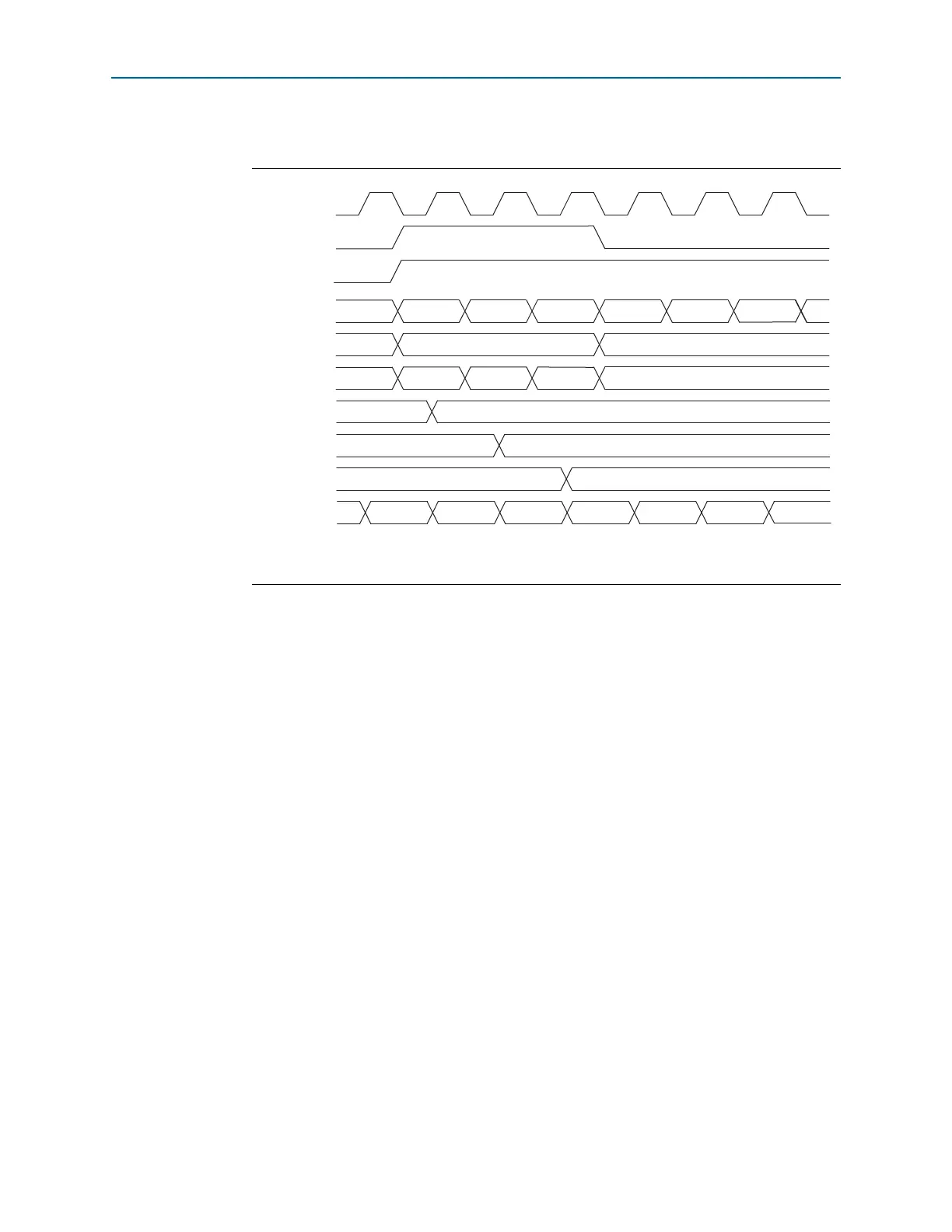

Figure 3–1. Cyclone IV Devices byteena Functional Waveform
(1)
Note to Figure 3–1:
(1) For this functional waveform, New Data mode is selected.
inclock
wren
address
data
q (asynch)
an
XXXX
a0 a1 a2 a0 a1 a2
doutn
ABFF
FFCD
ABCD ABFF FFCD
ABCD
byteena
XX 10 01 11
XXXX
XX
ABCD
ABCDFFFF
FFFF
FFFF
ABFF
FFCD
contents at a0
contents at a1
contents at a2
rden
