Chapter 8: Configuration and Remote System Upgrades in Cyclone IV Devices 8–13
Configuration
May 2013 Altera Corporation Cyclone IV Device Handbook,
Volume 1
Multi-Device AS Configuration
You can configure multiple Cyclone IV devices with a single serial configuration
device. When the first device captures all its configuration data from the bitstream, it
drives the
nCEO pin low, enabling the next device in the chain. If the last device in the
chain is a Cyclone IV device, you can leave the
nCEO pin of the last device
unconnected or use it as a user I/O pin after configuration. The
nCONFIG , nSTATUS ,
CONF_DONE , DCLK , and DATA[0] pins of each device in the chain are connected together
(Figure 8–3).

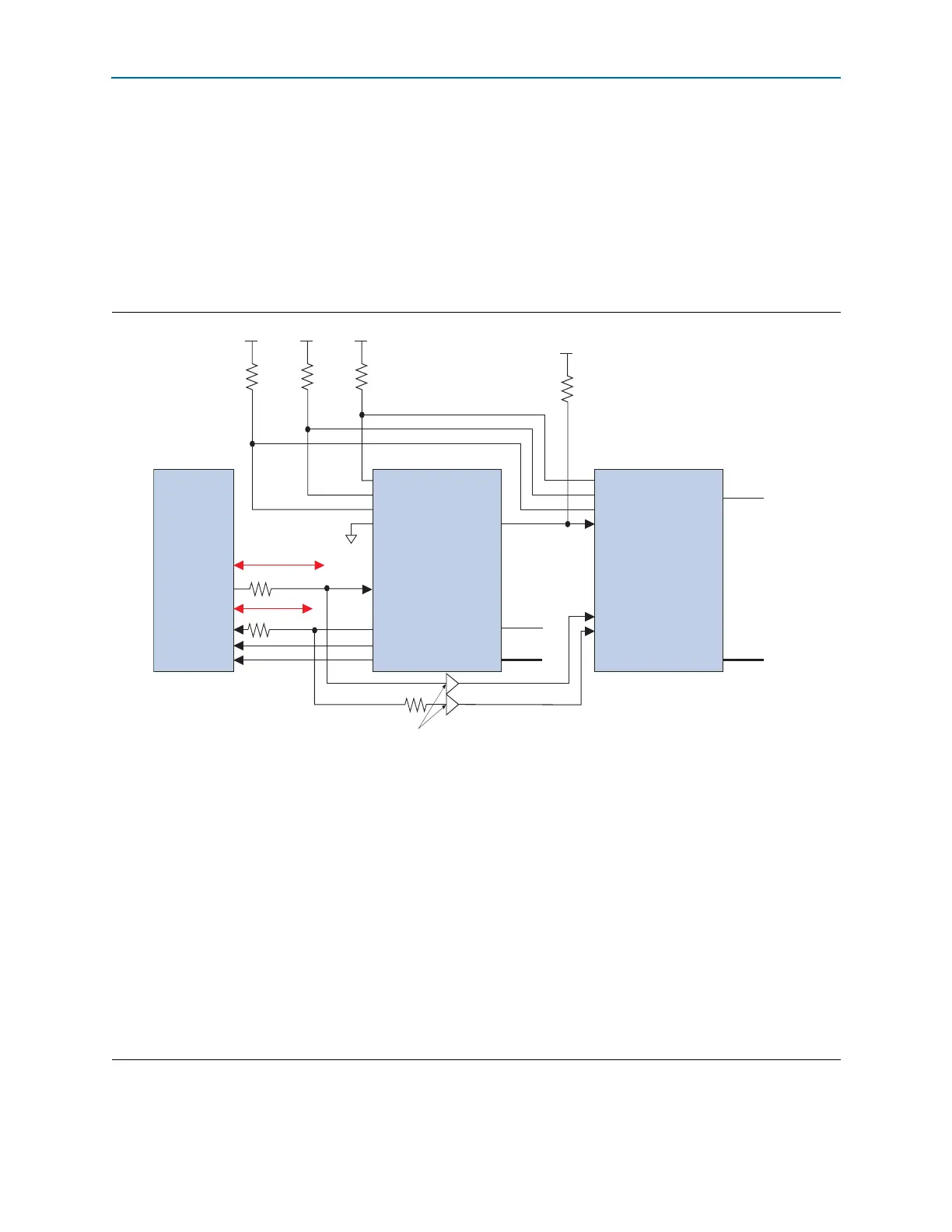

Figure 8–3. Multi-Device AS Configuration
Notes to Figure 8–3:
(1) Connect the pull-up resistors to the V
CCIO
supply of the bank in which the pin resides.
(2) Connect the pull-up resistor to the V
CCIO
supply voltage of I/O bank in which the nCE pin resides.
(3) You can leave the
nCEO pin unconnected or use it as a user I/O pin when it does not feed the nCE pin of another device.
(4) The
MSEL pin settings vary for different configuration voltage standards and POR time. You must set the master device of the Cyclone IV device
in AS mode and the slave devices in PS mode. To connect the
MSEL pins for the master device in AS mode and slave devices in PS mode, refer to
Table 8–3 on page 8–8, Table 8–4 on page 8–8, and Table 8–5 on page 8–9. Connect the
MSEL pins directly to V
CCA
or GND.
(5) Connect the series resistor at the near end of the serial configuration device.
(6) Connect the repeater buffers between the master and slave devices of the Cyclone IV device for
DATA[0] and DCLK . All I/O inputs must maintain
a maximum AC voltage of 4.1 V. The output resistance of the repeater buffers must fit the maximum overshoot equation outlined in “Configuration
and JTAG Pin I/O Requirements” on page 8–5.
(7) The 50- series resistors are optional if the 3.3-V configuration voltage standard is applied. For optimal signal integrity, connect these 50- series
resistors if the 2.5- or 3.0-V configuration voltage standard is applied.
(8) These pins are dual-purpose I/O pins. The
nCSO pin functions as FLASH_nCE pin in AP mode. The ASDO pin functions as DATA[1] pin in AP and
FPP modes.
(9) Only Cyclone IV GX devices have an option to select
CLKUSR (40 MHz maximum) as the external clock source for DCLK .
(10) For multi-devices AS configuration using Cyclone IV E with 1,0 V core voltage, the maximum board trace-length from the serial configuration
device to the junction-split on both
DCLK and Data0 line is 3.5 inches.
nSTATUS
nCONFIG
CONF_DONE
nCE
DATA[0]
DCLK
nCEO
DATA
DCLK
nCS
ASDI
N.C. (3
)
(4)
Serial Configuration
Device
Cyclone IV Slave Device
nSTATUS
nCONFIG
CONF_DONE
nCE
DATA[0]
DCLK
nCSO (8)
ASDO (8)
nCEO
MSEL[ ] (4) MSEL[ ]
V
CCIO
(1)
GND
V
CCIO
(1)
V
CCIO
(2)
(5)
V
CCIO
(1)
Buffers (6)
10 kΩ 10 kΩ
10 kΩ
10 kΩ
25 Ω
50 Ω
(5), (7)
50 Ω
(7)
Cyclone IV Master Device
CLKUSR
(9)
(10)
(10)
