S820E UG PN: 10580-00343 Rev. H 6-9
VNA Mode 6-4 Display Capabilities
6-4 Display Capabilities
The vector network analyzer has a flexible display capability that allows
single, dual, tri, and quad displays, meaning that you can subdivide the
measurement display area into 2, 3, or 4 sections. In addition, the vector
network analyzer supports the display of up to four traces in each single,
dual, tri, or quad display. Becoming familiar with these flexible display
capabilities is important before you begin any calibrations and
measurements.
Flexible Features For Displaying Results
If you are not yet familiar with the menus that control trace display, then
refer to the “Measurement Menu” on page 6-20 and the “Trace Menu”
on page 6-42“. To select the Measurement menu in VNA Mode, press the
Measurement main menu key (you must be in VNA Mode for this example).
Perform the following steps to observe the trace format features:
1. The default view (after preset) uses Trace Format = Quad with Number
of Traces = 4. Refer to Figure 6-3.

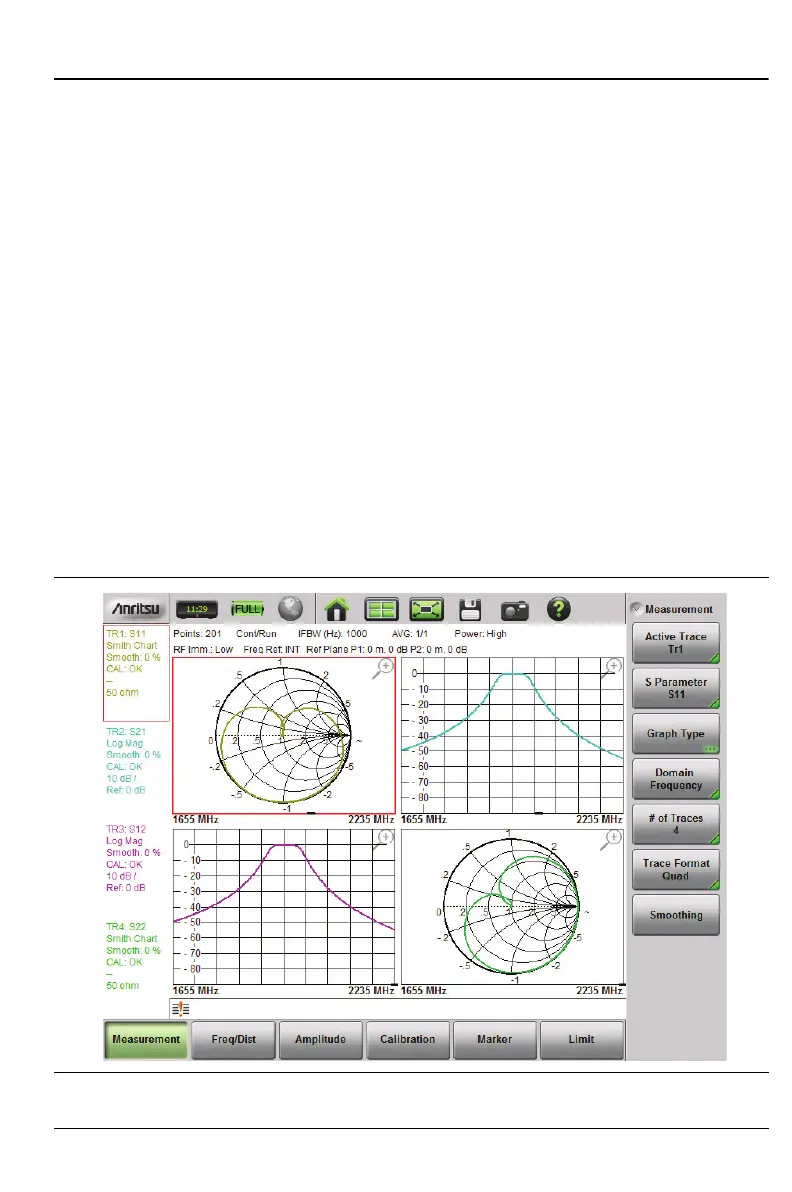

Figure 6-3. Format = Quad, Traces = 4
