8-12 PN: 10580-00343 Rev. H S820E UG
8-5 Table Display Format Vector Voltmeter
8-5 Table Display Format
Begin the measurements and save a reference (if needed). The measurement
results are displayed in the top row of the table. Press the Enter key to save a
measurement and move to the next row of the table.
In the example shown in Figure 8-8, multiple tuning stubs are being
measured and compared to a reference stub. Tolerance was specified as
< ± 0.1 dB and < ± 2° compared to the reference. From the results you can see
that stub numbers 4, 5, 6, and 8 fail the tolerance, but numbers 1,2,3 and 7
pass.
You can make a new row become the active row. Use the touchscreen to tap a
lock icon, or use the arrow keys or the rotary knob to highlight a row, then
press Enter.

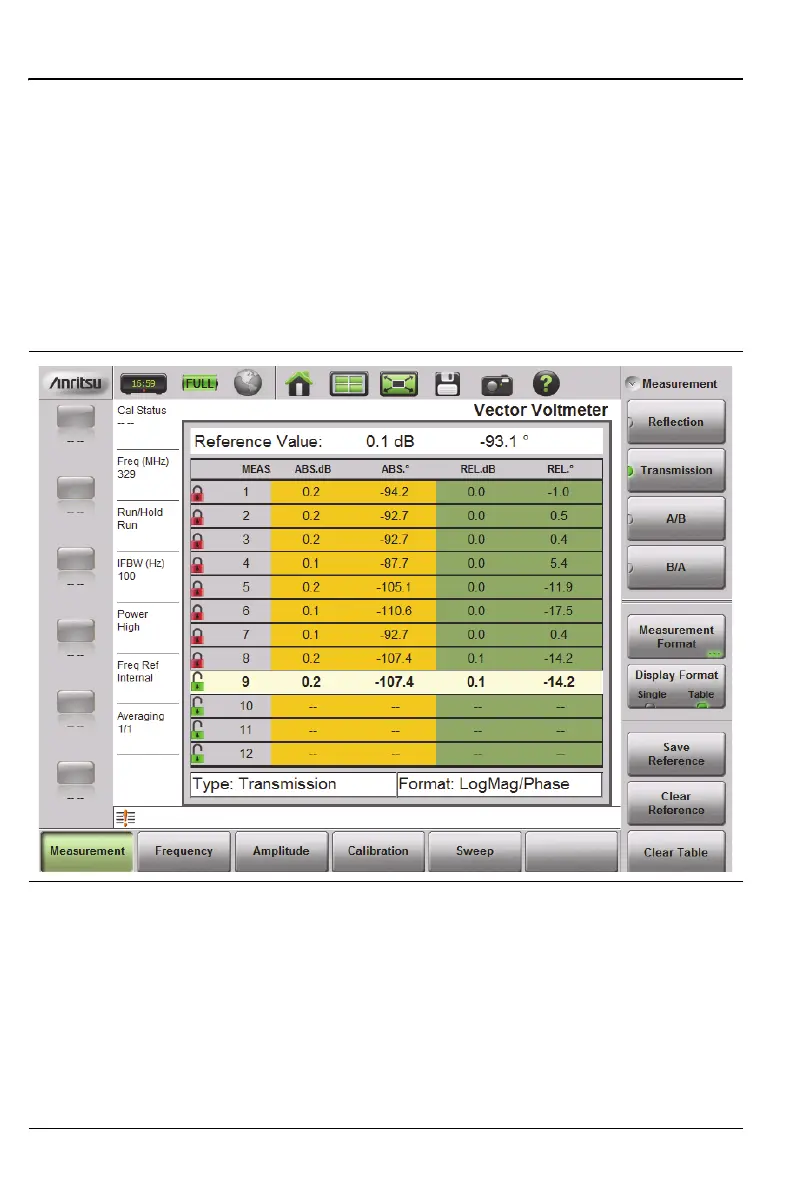

Figure 8-8. Table Display Format
