S820E UG PN: 10580-00343 Rev. H 8-25
Vector Voltmeter 8-9 Measurement Menu (2 of 2)
Single Display Format
This Vector Voltmeter display shows single measurement results in
2 rectangular windows, as shown in Figure 8-17. Single is the default Display
Format setting. For Reflection and Transmission measurements in magnitude
and phase formats, the measurement results are displayed as amplitude in
the upper window and phase in the lower window.

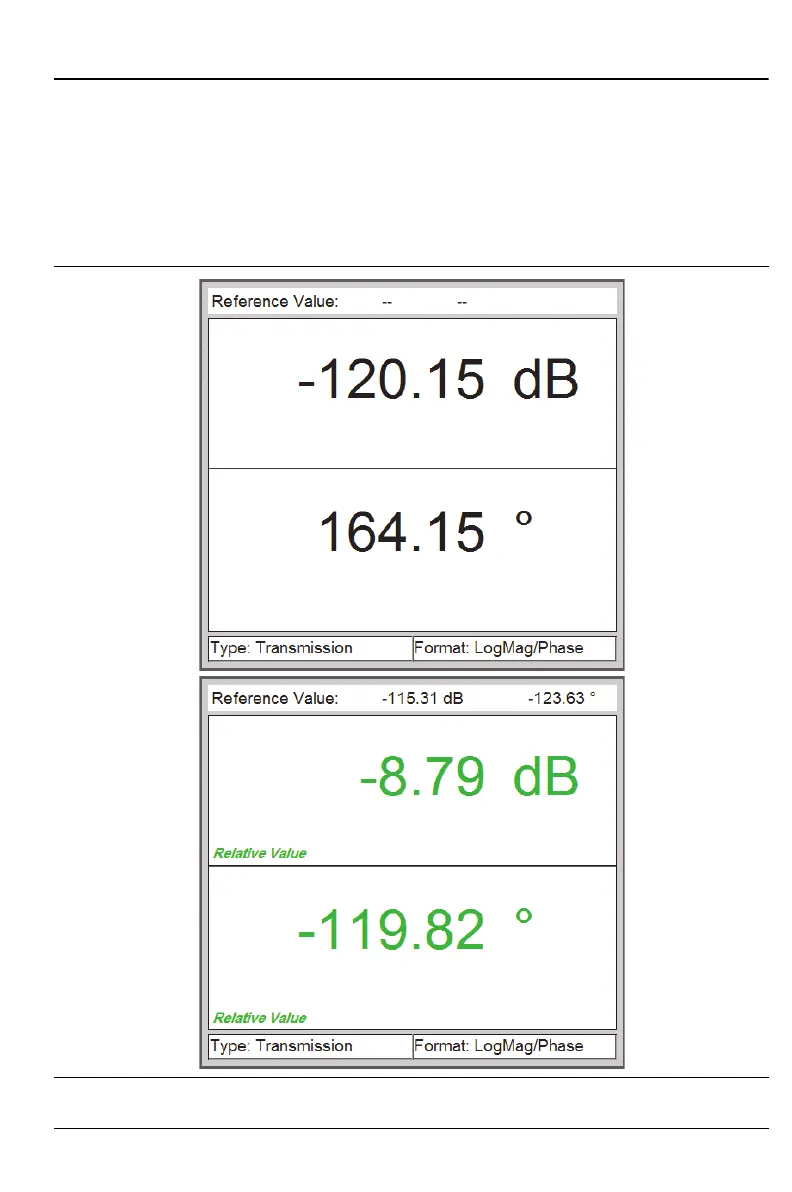

Figure 8-17. Single Display Format
