S820E UG PN: 10580-00343 Rev. H 9-13
High Accuracy Power Meter 9-4 MA24105A Inline Power Sensor
Inline Sensor Setup
The Sensor Settings submenu under the Display main menu adjusts the
inline sensor parameters (Figure 9-8). The on screen instructions provide
information for each parameter. To change a parameter, select it with the
Up/Down Arrow keys or the touchscreen and press Edit.

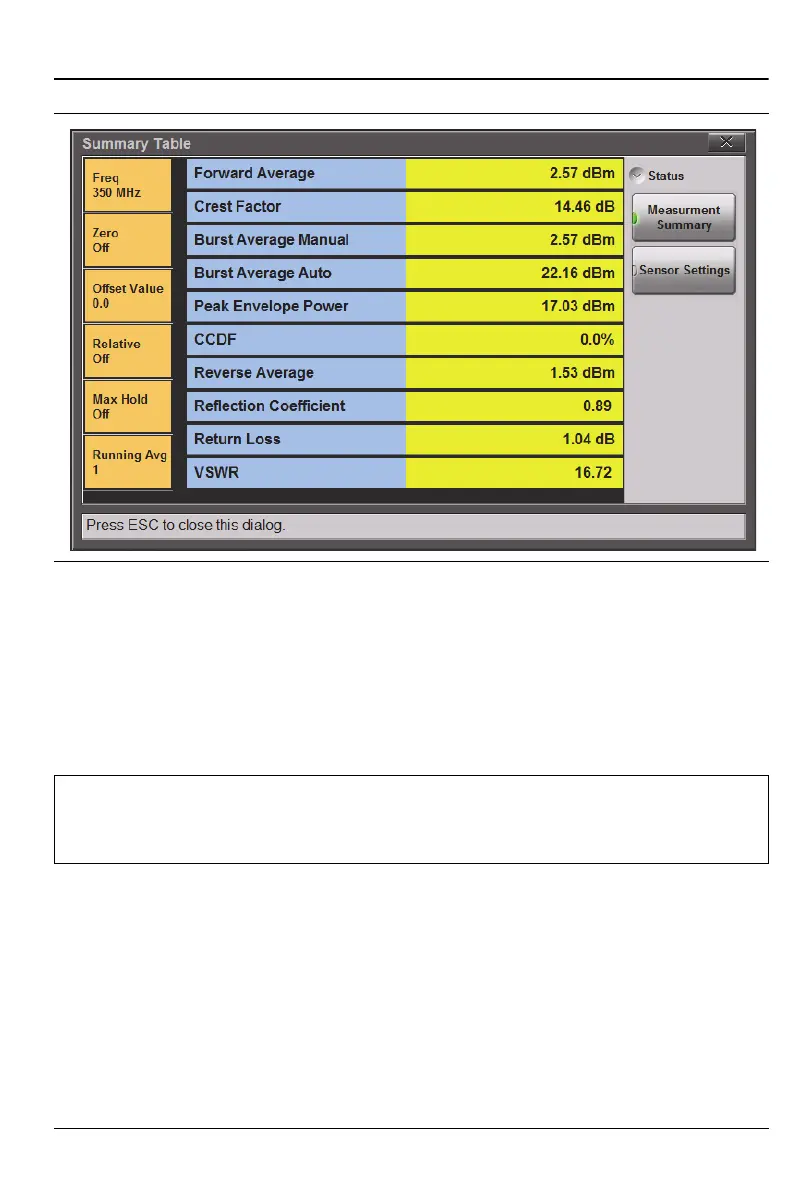

Figure 9-7. Summary Table View
Note
Several sensor settings are only appropriate for specific
measurements. Refer to the on screen information in the Sensor
Settings dialog for additional information.
