2-12 PN: 10580-00343 Rev. H S820E UG
2-4 Front Panel Overview Instrument Overview
Front Panel Interface
1. Status Tool Bar
2. Port 1
3. System Function Tool Bar (not available in “Classic” mode)
4. Port 2
5. Menu Key
6. Rotary Knob
7. Enter Key and Arrow Keys
8. Esc Key
9. Number Keypad and Menu Keys
10. Charge LED
11. On/Off/Standby Button
12. Power LED
13. Submenu Keys
14. Main Menu Keys

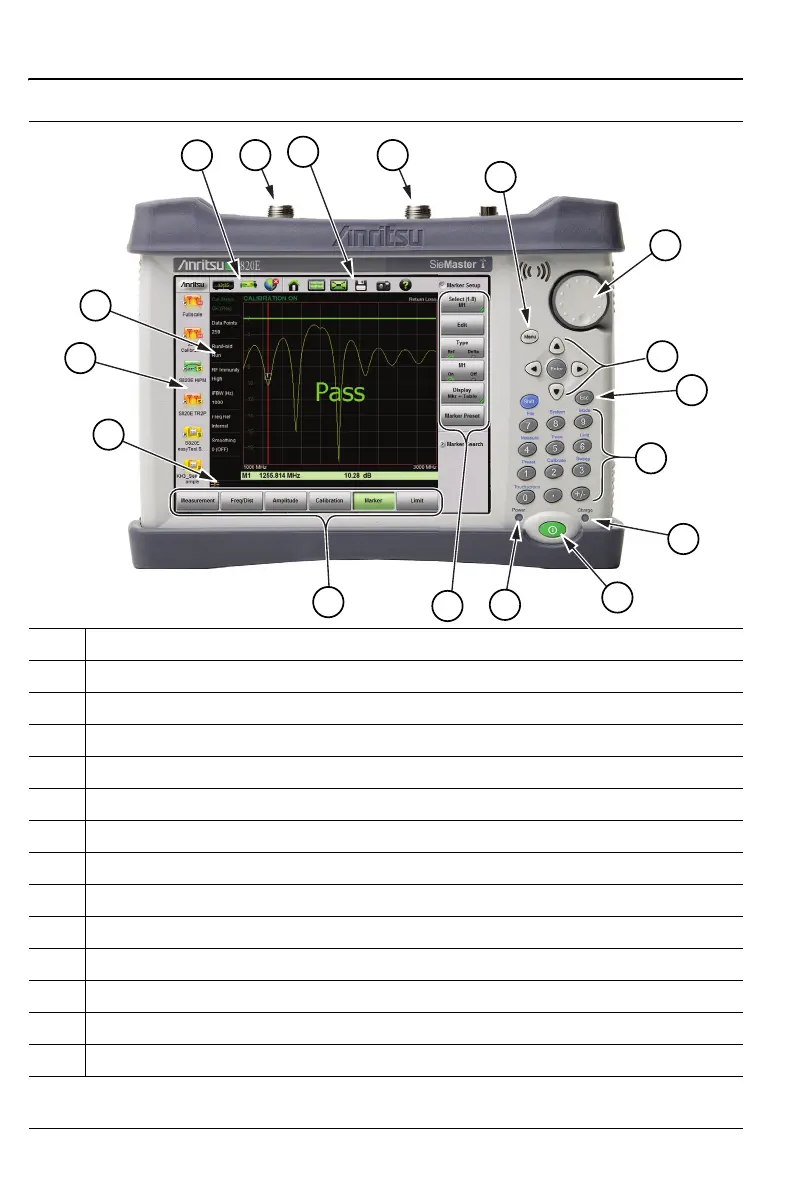

Figure 2-5. Site Master Instrument Overview (1 of 2)
16
15
17
1
5
3
6
7
8
9
10
11
12
13
14
2 4
