Anritsu S820E - 9-2 Power Meter Display

S820E UG PN: 10580-00343 Rev. H 9-3
High Accuracy Power Meter 9-2 Power Meter Display
9-2 Power Meter Display

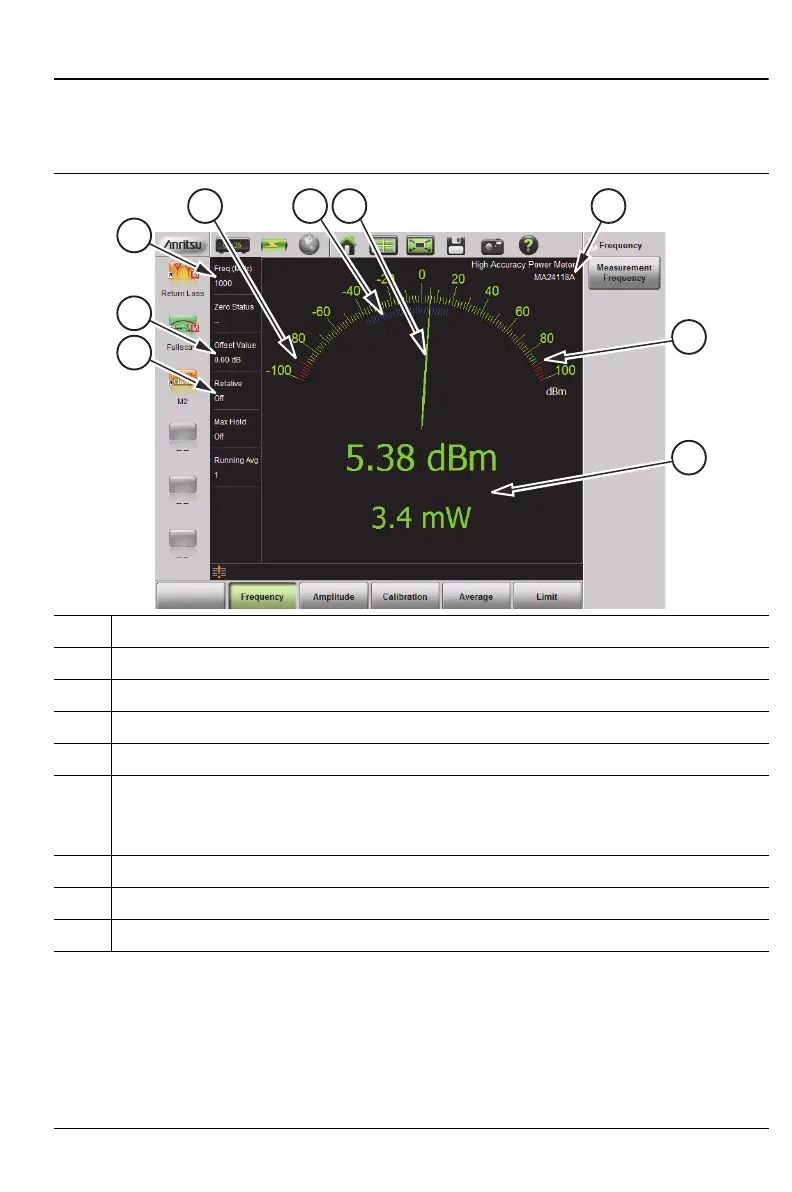

Figure 9-1 illustrates the preset Power Meter display with limits turned on.
1. Preset –90 dBm Lower Limit
2. Power Range of Attached Sensor
3. Power Meter Needle
4. High Accuracy Power Meter Mode and Connected USB Sensor
5. Preset +90 dBm Upper Limit
6. Current Power in dBm and Watts (including any Offset Value) or “No USB
sensor detected” if an external USB sensor is not connected or
recognized by the Site Master.
7. Relative Power (dB and %) or Absolute Power (dBm and Watts)
8. Offset Value to Account for External Attenuation or Gain
9. Source Frequency Used for Correction Factor
Figure 9-1. Power Meter Display Overview
3 4
8
7
5
21
9
6
