S820E UG PN: 10580-00343 Rev. H 15-9
Video Inspection Probe (VIP) 15-4 Operation
VIP Reporting
You can output the captured VIP image and analysis results to a
PDF-formatted file, using the Report main menu key. The report may
include current or previously saved data, or both.
1. Press Header Settings to enter or change the report header data.

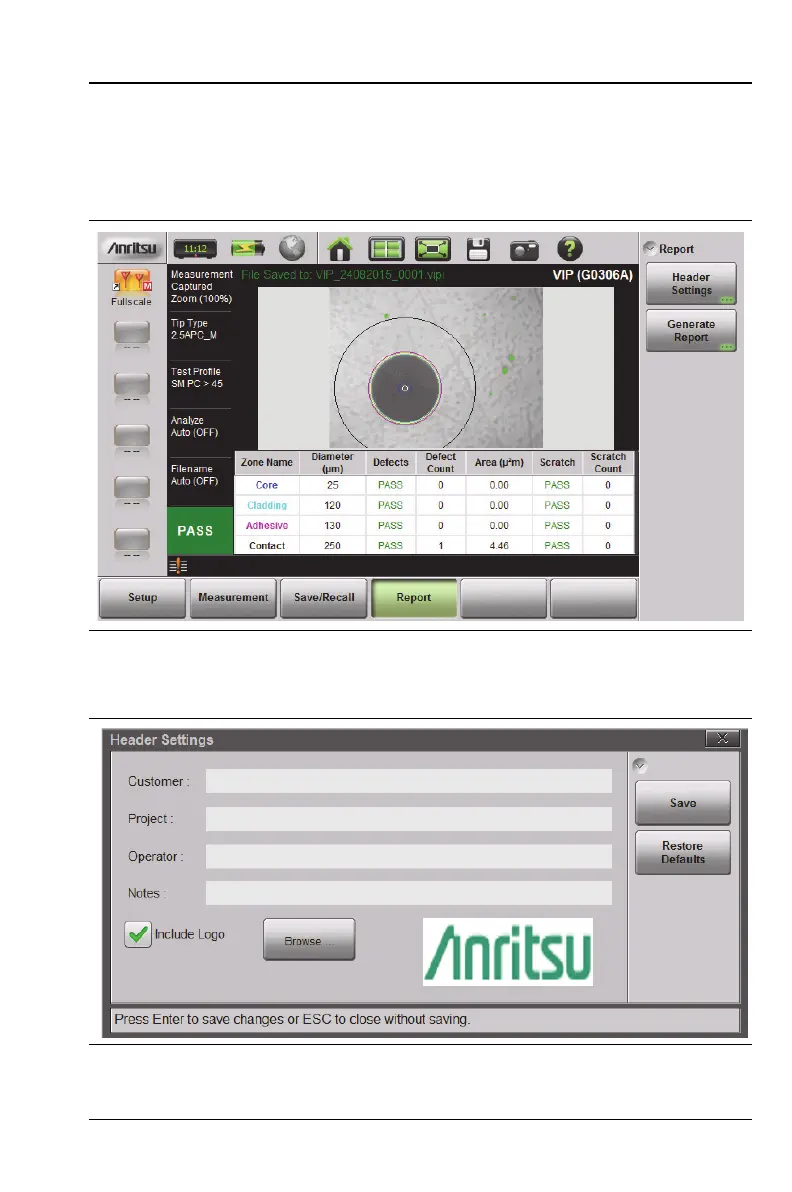

Figure 15-8. VIP Report Menu
Figure 15-9. VIP Report Header Settings Dialog
