Introduction
Attaching the MA24105A inline peak power sensor adds additional menus
and submenus required for making the following in-line measurements:
• Forward Measurements: Average Power, Crest Factor, Peak Envelope
Power (PEP), Burst Average Power, and CCDF.
• Reverse Measurements: Average Power, Reflection Coefficient, Return
Loss, and VSWR.
In the default view the analog meter displays the forward measurements.
The reverse measurements are displayed below the numerical display of the
forward measurements (Figure 9-6). To view all of the forward and reverse
measurements in table format, use the Summary Table display (Figure 9-7).
Note
Refer to the previous sections in this chapter for a general
overview of using USB sensors with the Site Master.
This section is specific to the additional options and settings
available when the MA24105A in-line sensor is attached
(Figure 9-2 on page 9-4). There are numerous menu changes
with this meter. Refer to Figure 9-21 on page 9-26.

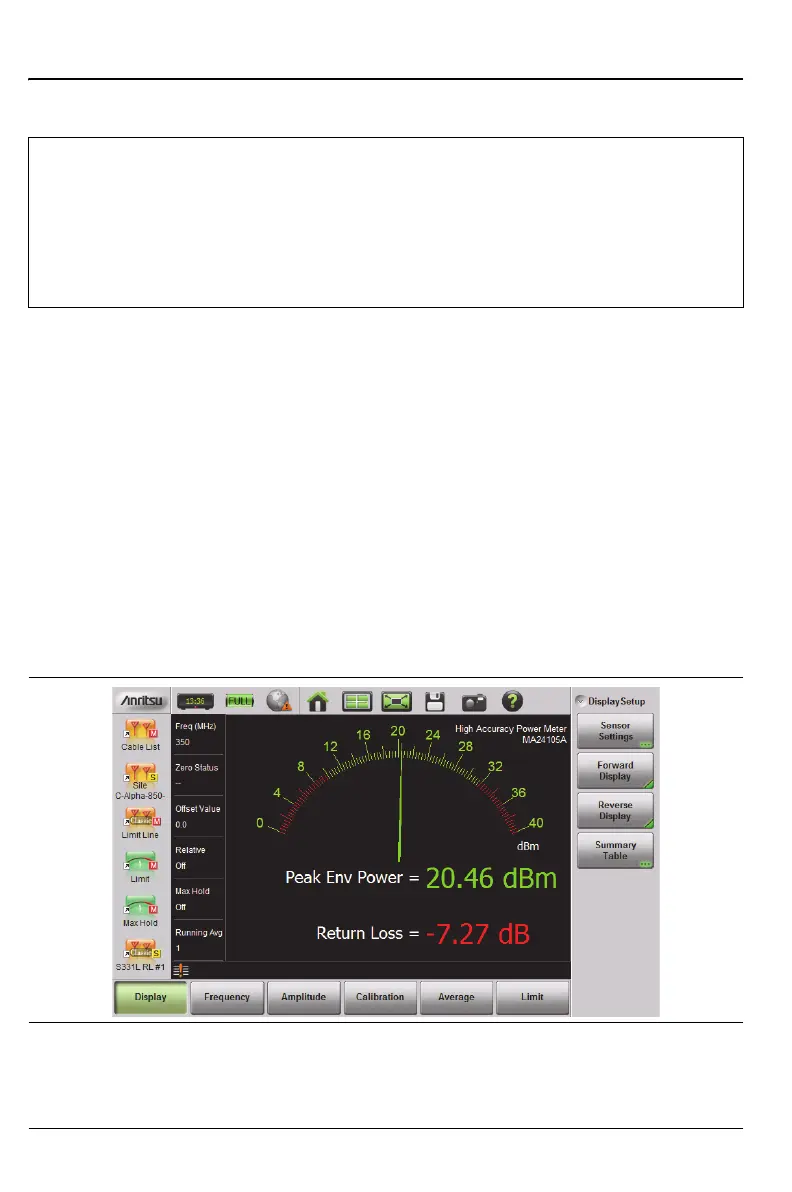

Figure 9-6. Power Meter View
