S820E UG PN: 10580-00343 Rev. H 5-9
Classic Mode Operation 5-5 Limit Menu
Pass/Fail Messages
Figure 3-22 on page 3-39 shows the Pass/Fail message. To change the size
and location of the Pass/Fail message, (when the Limit menu is displayed) tap
the small circled arrow in the lower-right corner of the large format message
box. The circled arrow is in the upper-left corner when the message is in
small format. Notice that the trace is displayed in red wherever it meets or
exceeds the set limit.

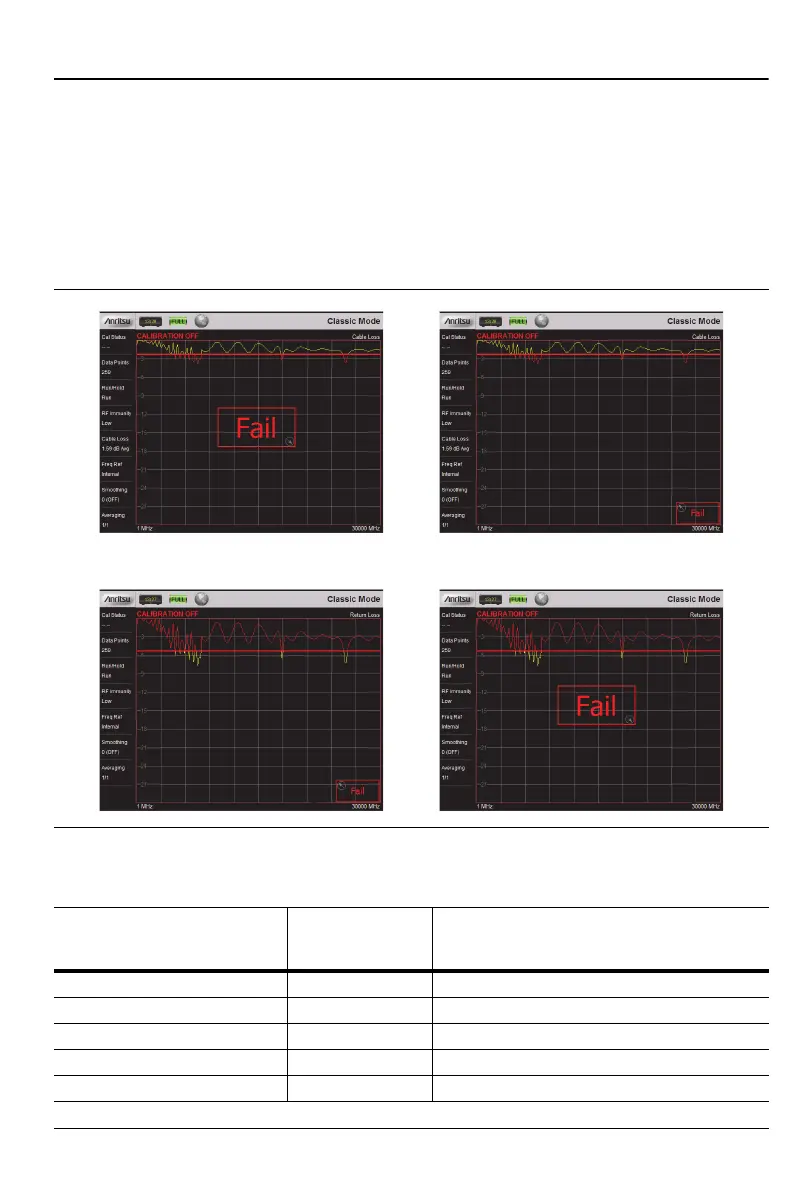

Figure 5-7. Pass / Fail Messages
Table 5-2. Classic Mode Limit Lines Messages
Measurement
Typical End
Tool Pass/Fail Criteria
Return Loss Load Pass when the trace is below the limit line
DTF Return Loss Load Pass when the trace is below the limit line
Cable Loss Short or Open Pass when the trace is above the limit line
VSWR Load Pass when the trace is below the limit line
DTF VSWR Load Pass when the trace is below the limit line
