9-3 General Measurement Setup Connection High Accuracy Power Meter
9-3 General Measurement Setup Connection
Note
Refer to the label on the USB sensor for information on frequency
range and dynamic range.

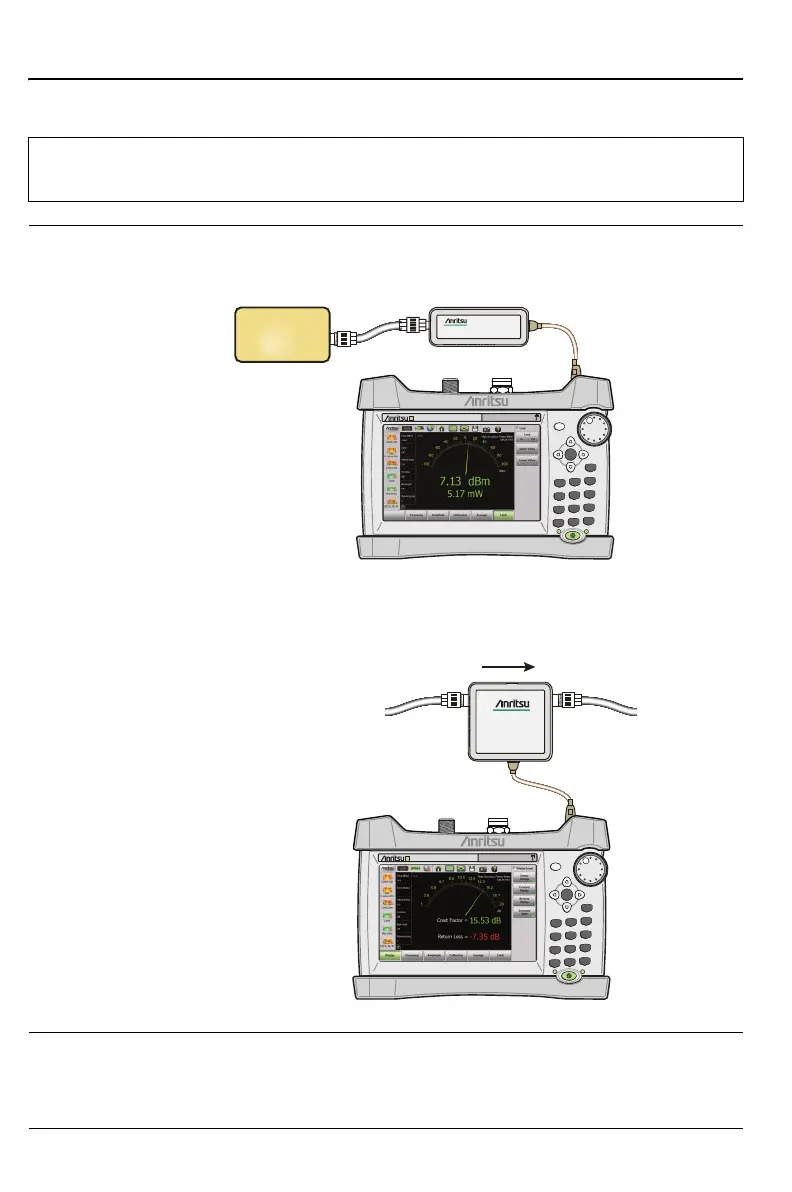

Figure 9-2. External USB Sensor Connection Setups
S820E Site Master
USB
Enter
Menu
S331AL
Save
7
System
8
Preset
9
ScrnShot
4
Trace
5
Limit
6
File
1
Touch
2
Sweep
3
Help
0
AutoScl
.
Run/Hold
+/-
ESC
SiteMaster
DUT
Connection Setup
for Anritsu High Accuracy
Terminating Sensors
S820E Site Master
USB
RF IN
RF IN
RF OUT
Forward
Power
Transmitter
Antenna
Enter
Menu
S331AL
Save
7
System
8
Preset
9
ScrnShot
4
Trace
5
Limit
6
File
1
Touch
2
Sweep
3
Help
0
AutoScl
.
Run/Hold
+/-
ESC
SiteMaster
Connection Setup
for Anritsu High Accuracy
Inline Sensors
