Anritsu S820E - Classic Mode and Advanced Mode

5-2 PN: 10580-00343 Rev. H S820E UG
5-2 Classic Mode and Advanced Mode Classic Mode Operation
5-2 Classic Mode and Advanced Mode
Figure 5-2 on page 5-4 and Figure 5-3 on page 5-5 show an overview of the
Classic Cable and Antenna Analyzer menus and keys. Descriptions of the
main menus and associated submenus are provided in Chapter 3.

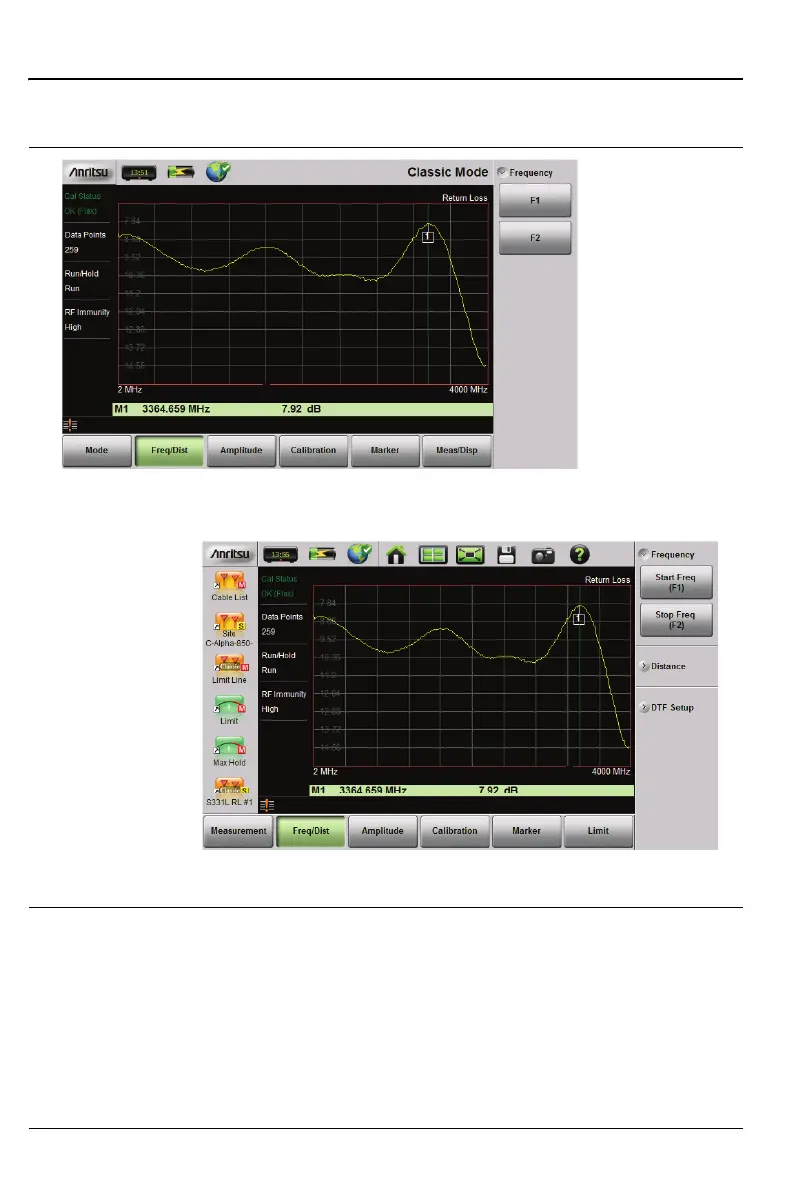

Figure 5-1. Comparison of “Classic” Mode vs. “Advanced” Mode
“Classic” Mode (Chapter 4)
“Advanced” Mode (Chapter 3)
“C
lassic” Mode (
C
hapter 4
)
