Measurement Format
LogMag/Phase measurement results are displayed as logarithmic amplitude
in dB in the upper window and as phase in degrees in the lower window.
LinMag/Phase measurement results are displayed as linear amplitude in the
upper window and as phase in degrees in the lower window.
SWR displays the ratio (with no units) in the upper window only.
Impedance measurement results are displayed as real impedance in the
upper window, and as imaginary impedance in the lower window.

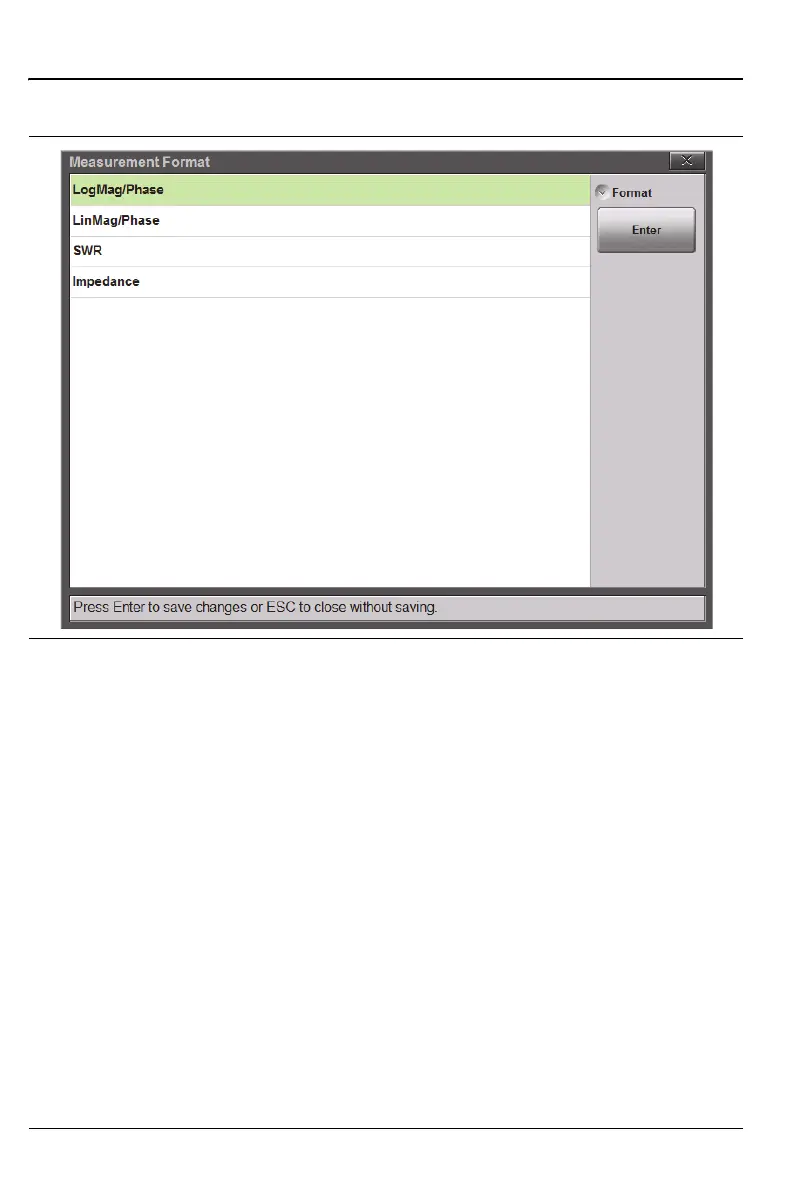

Figure 8-16. Measurement Format Dialog Box
