Instrument Overview 2-5 Touchscreen Display Overview
Dual Display Format
The S820E Microwave Site Master can display two different measurements
simultaneously by setting the Display Format to Dual and then selecting the
measurement to display.

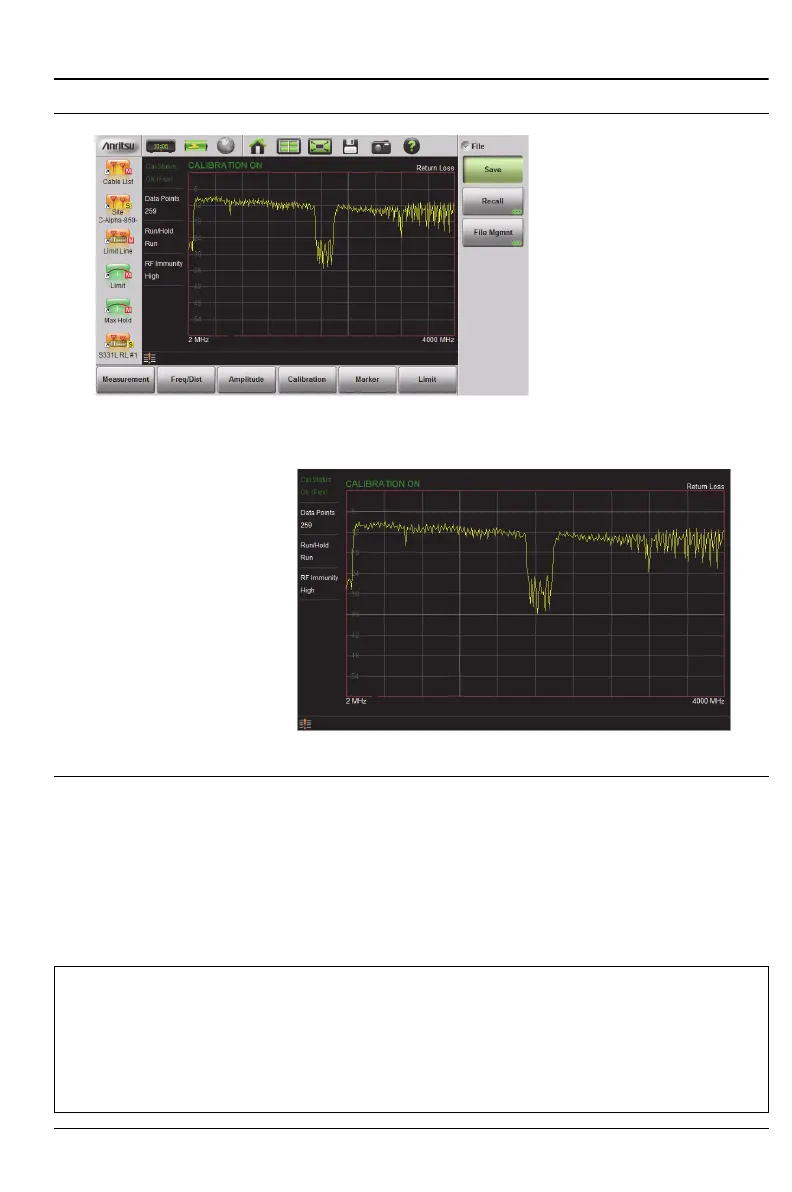

Figure 2-13. Comparison of Standard Mode vs. Full Screen Mode
Note
Advanced measurements can be combined with Standard
measurements.
Not all measurement combinations may be supported by Line
Sweep Tools. Refer to the Line Sweep Tools Help menu for more
information.
Standard View
Full Screen View
