S820E UG PN: 10580-00343 Rev. H 9-17
High Accuracy Power Meter 9-4 MA24105A Inline Power Sensor
Summary View
The Summary Table button under the Display main menu provides a
summary of Site Master instrument settings, DUT forward and reverse
measurements, and sensor settings (Figure 9-12).

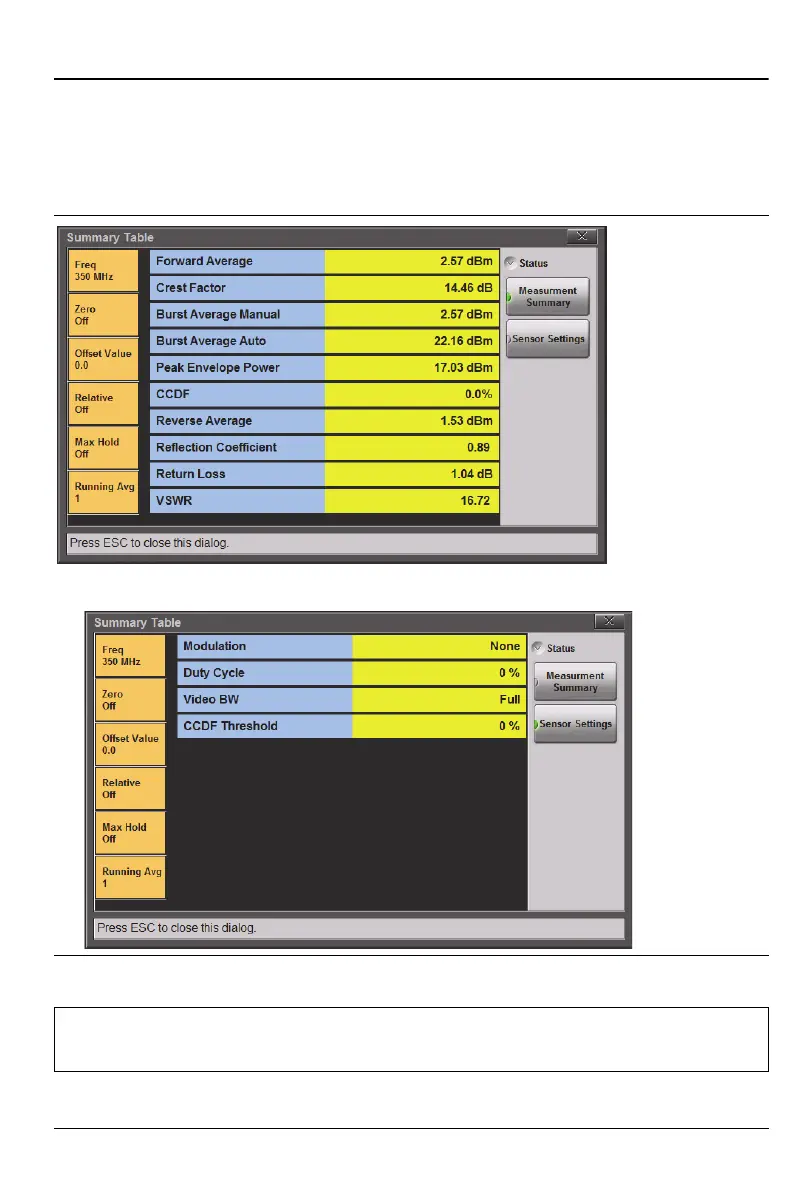

Figure 9-12. Summary Table
Note
Modifying sensor settings is described in “Inline Sensor Setup”
on page 9-13.
