7-18 PN: 10580-00343 Rev. H S820E UG
7-4 Calibration Procedures Calibration, VNA
Figure 7-11 shows the Calibration dialog box illustrating calibration setup
and calibration steps. On-screen instructions are given for each step.
Save and Recall Calibration Coefficients
Calibration information is included when a setup (.stp) file is saved (even if
the Cal Correction is Off). The calibration information is recalled with a setup
file and can be applied if the current internal instrument temperature is
within the saved calibration window.
Calibration information is not included when a measurement (.svna) file is
saved.

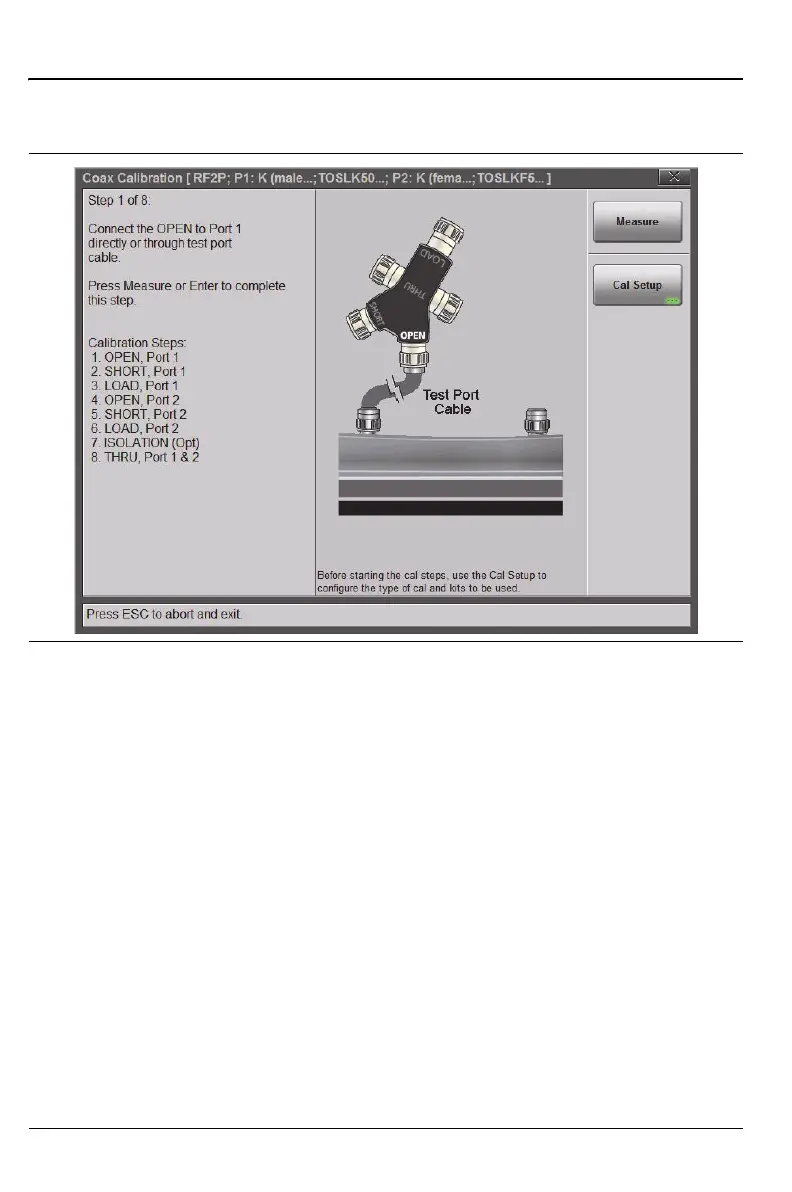

Figure 7-11. Calibration Dialog Box for Coax
