9-14 PN: 10580-00343 Rev. H S820E UG
9-4 MA24105A Inline Power Sensor High Accuracy Power Meter
Modulation
In the Sensor Settings dialog, highlight the Modulation = ... row and press Edit.
Use the Up/Down keys, rotary knob or touchscreen to highlight the desired
modulation type, and then press Select.
The selection of a specific modulation type provides a correction factor to
refine the PEP calculation.

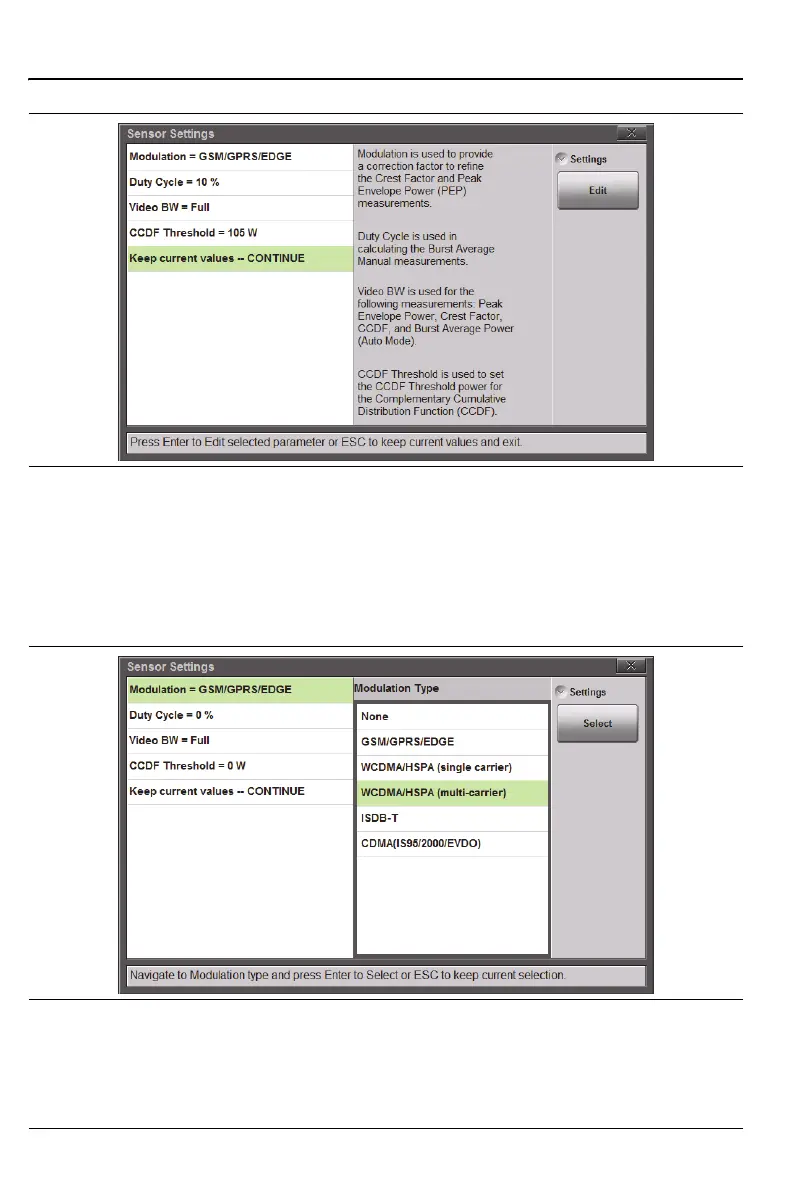

Figure 9-8. Sensor Settings
Figure 9-9. Sensor Settings
