S820E UG PN: 10580-00343 Rev. H 9-15
High Accuracy Power Meter 9-4 MA24105A Inline Power Sensor
Duty Cycle
Sets the duty cycle used for averaging when the forward measurement is set
to Burst Average Manual. Select a value from 0 % to 100 %. In the Sensor
Settings dialog, highlight the Duty Cycle = ... row and press Edit. Use the
Up/Down keys, rotary knob or key pad to set the duty cycle and then press
Enter.
Video Bandwidth
Sets the Video Bandwidth span used in several forward measurements. In
the Sensor Settings dialog, highlight the Video BW = ... row and press Edit.
Use the Up/Down keys, rotary knob or touchscreen to highlight the desired
View BW and then press Select.
CCDF Threshold
Sets the power threshold value used in the Complementary Cumulative
Distribution Function (CCDF) forward measurement. CCDF describes the
probability that the signal power is greater than the user-defined threshold
value. In the Sensor Settings dialog, highlight the CCDF Threshold ... row and
press Edit. Set the desired value and press one of the units of measure buttons
to complete.

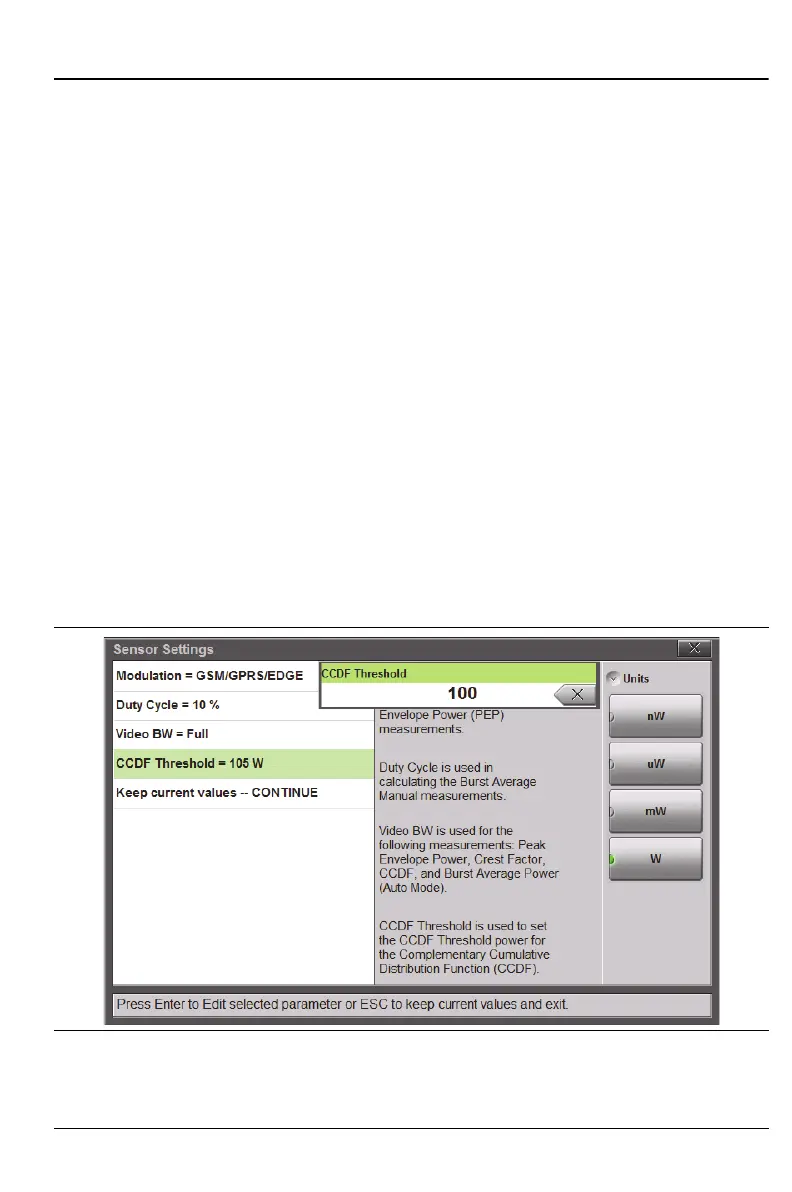

Figure 9-10. CCDF Threshold
