The M1 gain control now controls the signal level feeding the multitrack.

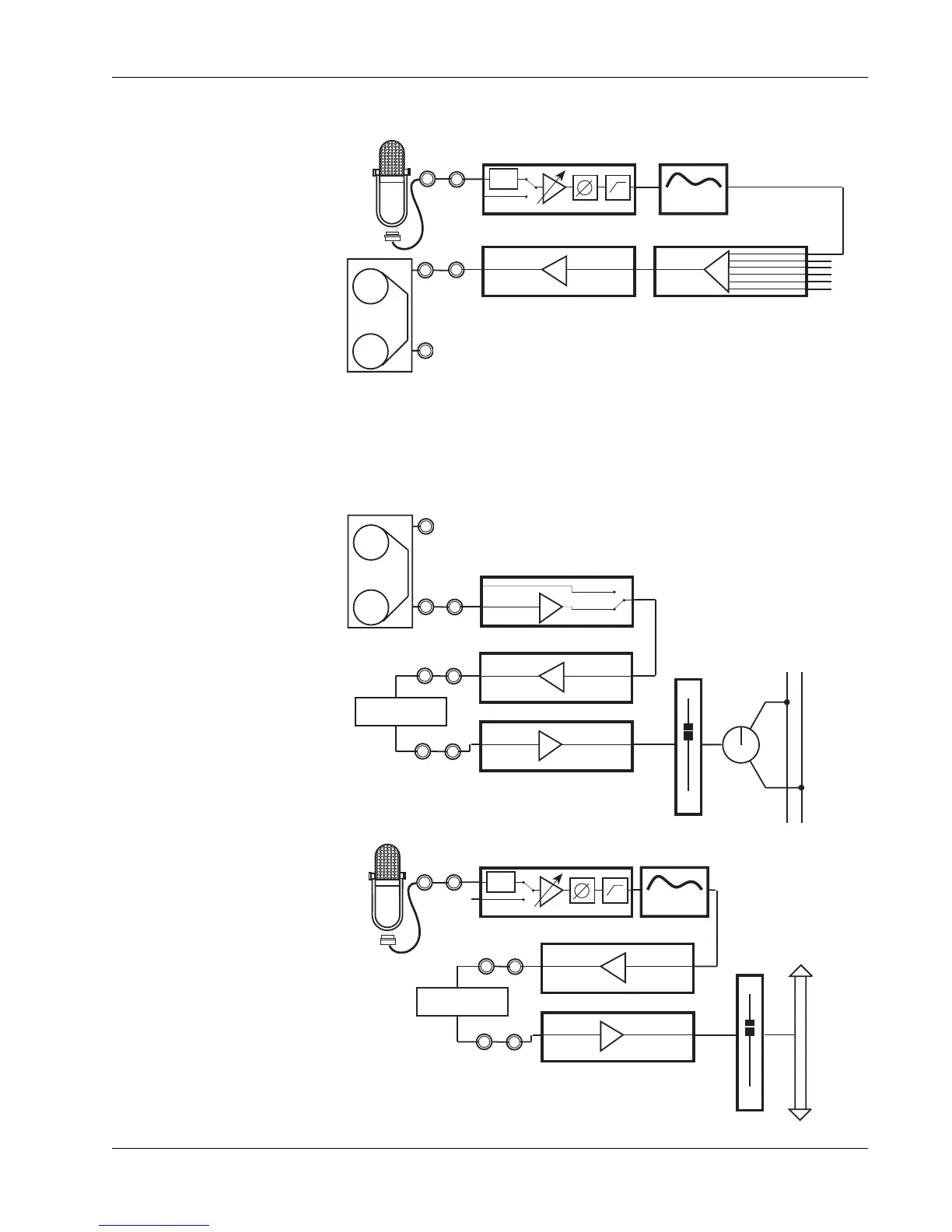

Below is a diagram of the signal path now:
This still leaves both faders free and plenty of channel inputs to feed them.
The lower fader could act as a multitrack monitor to the two stereo buses with
insert point, while the upper fader can source another input, with insert point
and EQ, to the multitrack buses and the stereo buses.
