Section 9: Dynamics
Euphonix CS3000/2000 Operation Manual 9 - 9
Main Input
Key Input
Input Level
SC
Source
SC Listen
Off
Filters
In
Gate
Detector
Compress
Detector
Output
Peak
Stop
Filter Path = Sidechain
Main Input
Input Level
SC Listen
Off
Filters
In
Gate
Detector
Compress
Detector
Output
Peak
Stop
Filter Path = Main
Filters
Note: The SC Source control should be set to Main.

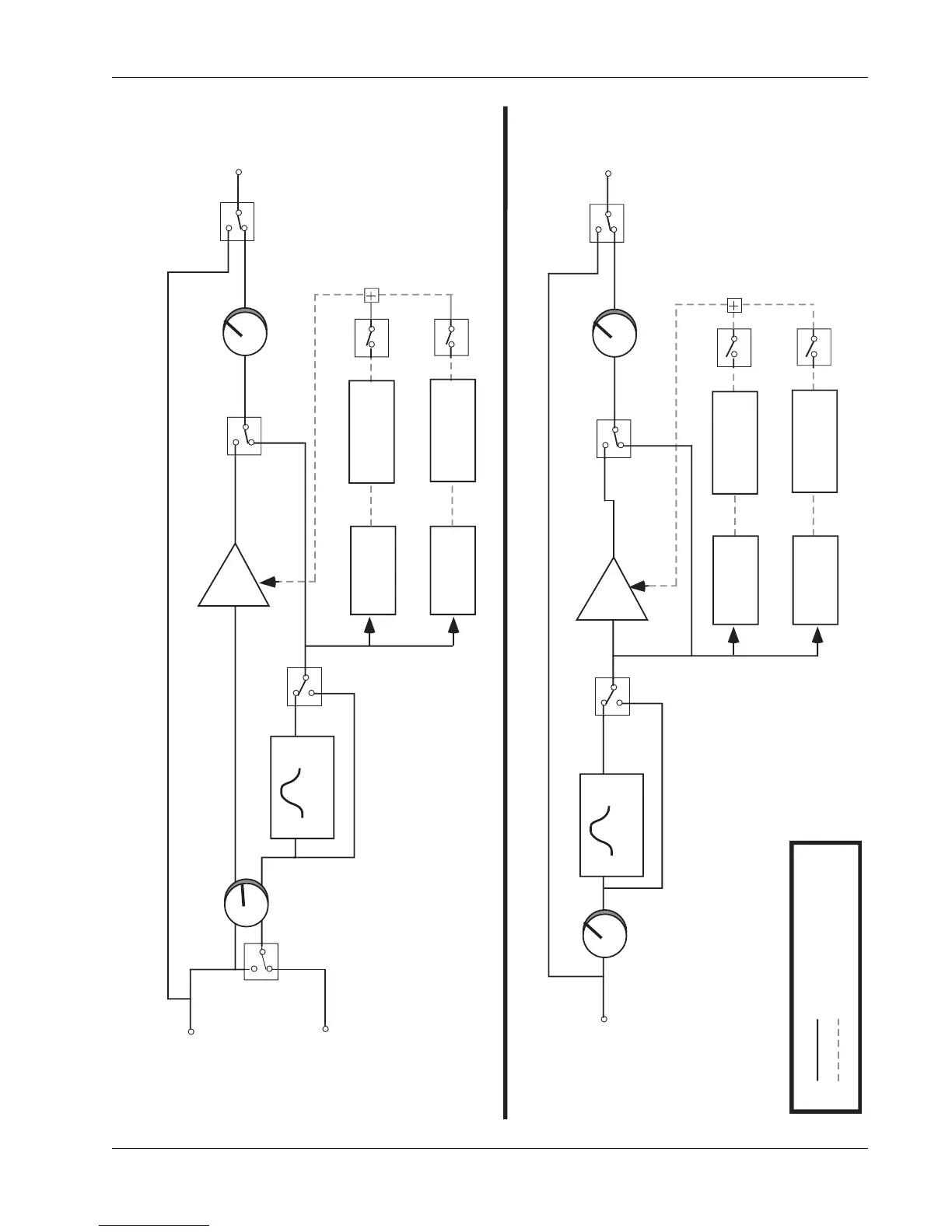

Dynamics Signal Path (Simplified)
Dyn In
Dyn In
Filters
Gate
On
Comp
On
Gate
On
Comp
On
Out
On
Bypass
VCA
VCA
Out
Compressor
Gain Control
Gate
Gain Control
Compressor
Gain Control
Gate
Gain Control
On
Bypass
= Digital Control
= Analog Audio Path
