Optimizing B-Mode
LOGIQ 7 Online Help 5-53
Direction 2392536-100 Rev. 1
TIC Plot Control (continued)
Horizontal Scale Set the horizontal unit as time scaling (s) or time interval (dt)
between frames.

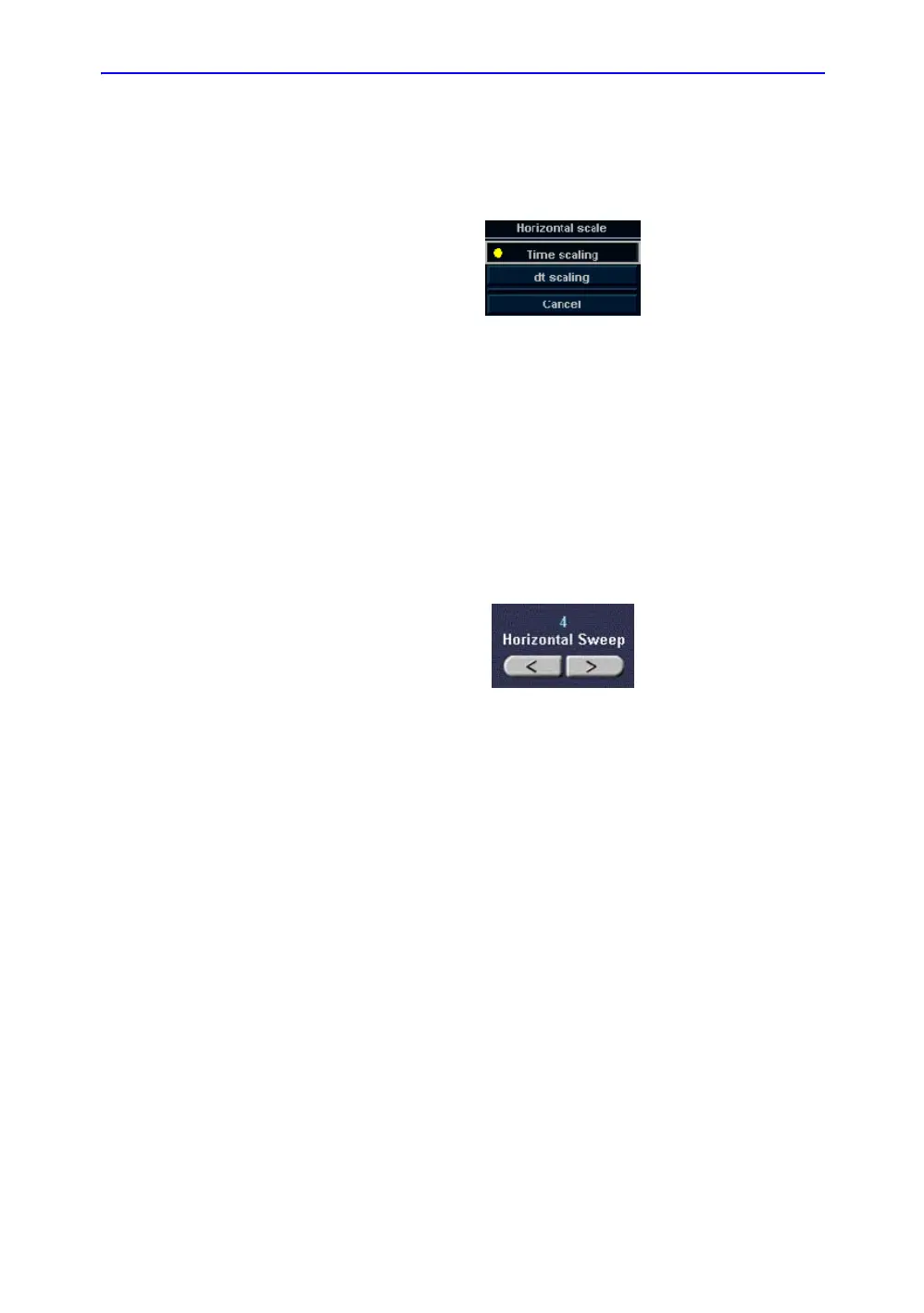

Figure 5-25. Horizontal Scale Pop-up menu
NOTE: The Horizontal Scale menu displays for CHA and Phase
Inversion.
Horizontal Sweep Horizontal Sweep allows to increase or decrease the time
interval over which to plot the TIC curve.
The Horizontal Sweep control can range from TBD on the short
side to the time interval between the user selected first and last
frame. The default is the user selected image range. If the user
has not yet selected a first and last frame, the first and last
default frames from the displayed CINE loop are used.
Figure 5-26. Horizontal Sweep
