GE LOGIQ 7 Basic User Manual

Optimizing B-Mode
LOGIQ 7 Online Help 5-57
Direction 2392536-100 Rev. 1
To enable the
frames
To re-enable all deleted frames :
1. Position the cursor on the Frame Marker line and press the
left Set key. The system menu is diplayed at the cursor
position.
2. Select Enable all frames.
3. All disabled frames are re-enabled.

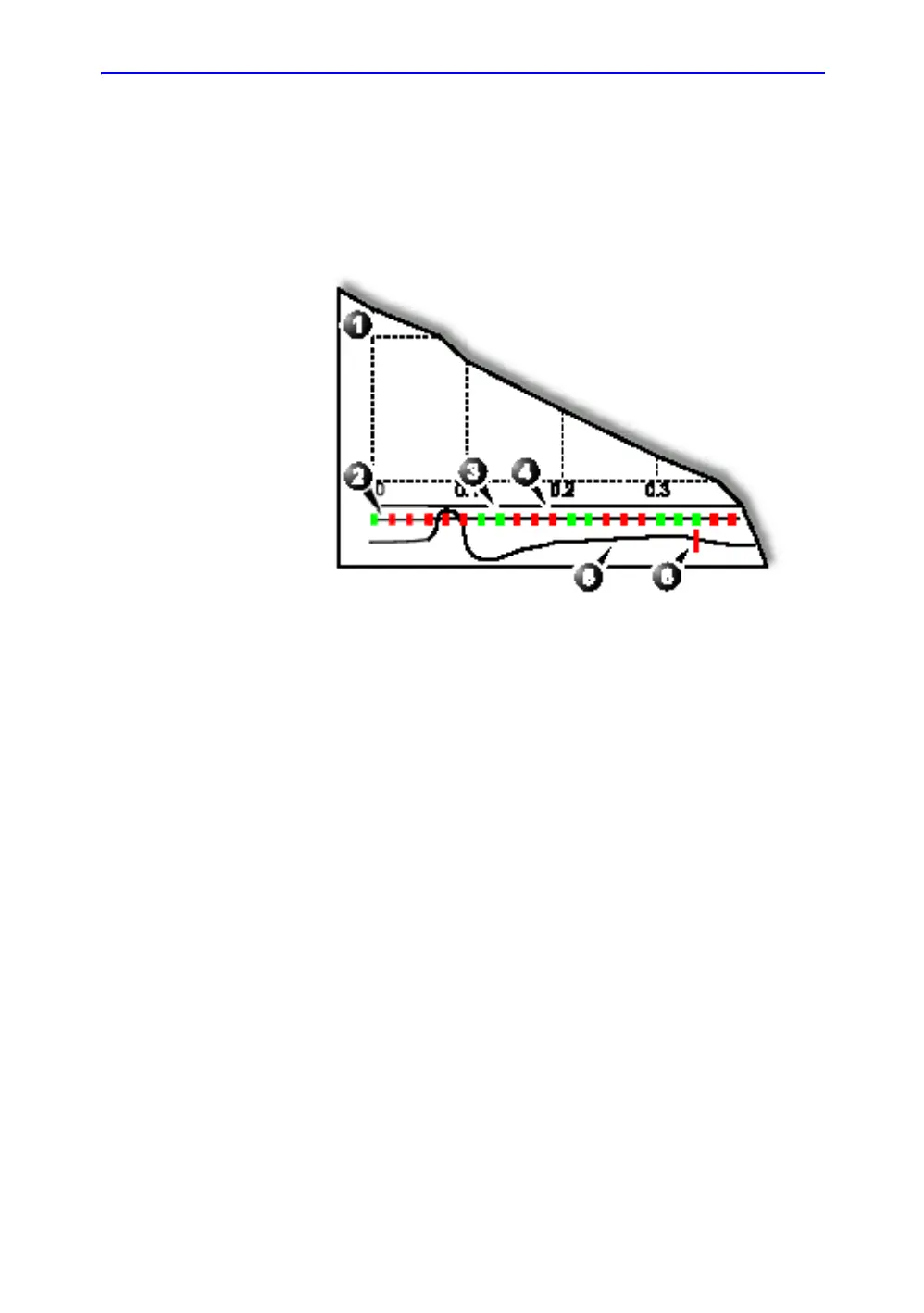

Figure 5-29. Frame makers
1. Analysis Window
2. Frame markers axis
3. Enabled frame (Green)
4. Disabled frame (Red)
5. ECG
6. Current frame
