General Measurements and Calculations
7-38 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
Adding a user-defined measurement (continued)
4. Select OK.
• If you created a blank measurement, the system adds a
measurement with a name such as USERDEFM3.
• If you created a measurement from a copy of an existing
measurement, the system lists the measurement and its
parameters in the Measurement section.
5. When you create a new measurement, the measurement
name is automatically highlighted. Type a name for the new
measurement. You can change the name of a measurement
you created from a copy.

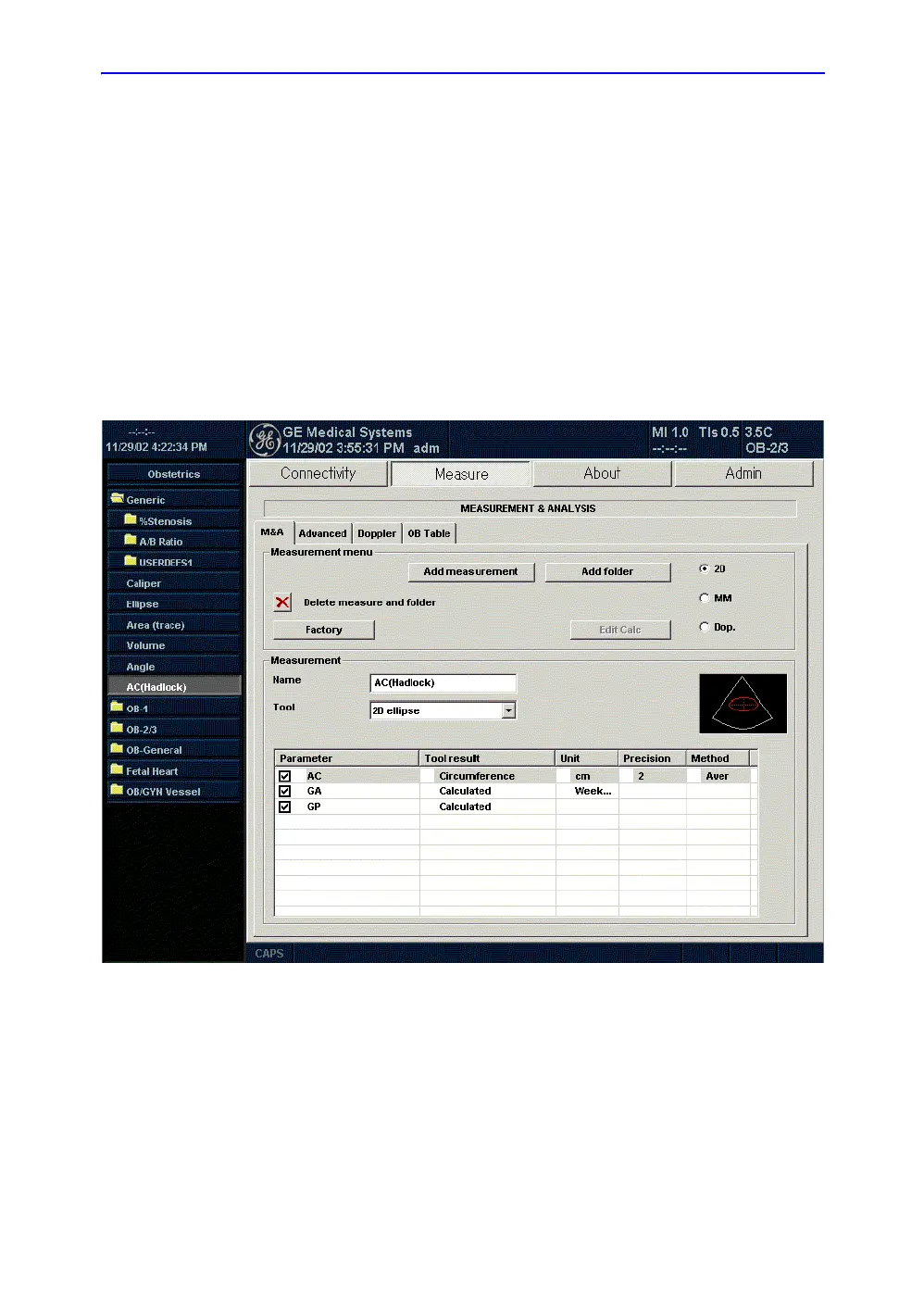

Figure 7-22. Measurement & Analysis: Add measurement
