Fetal Trending
When you have ultrasound data for more than one exam for a
patient, you can use the data to look at fetal trending on the
Fetal Growth Curve Graphs.
1. Select Graph Display and select the desired Fetal Growth
Curve Graph.
2. Select Plot Both.
The system automatically finds the data from previous
ultrasound exams, and displays it on the graph with the
present data.

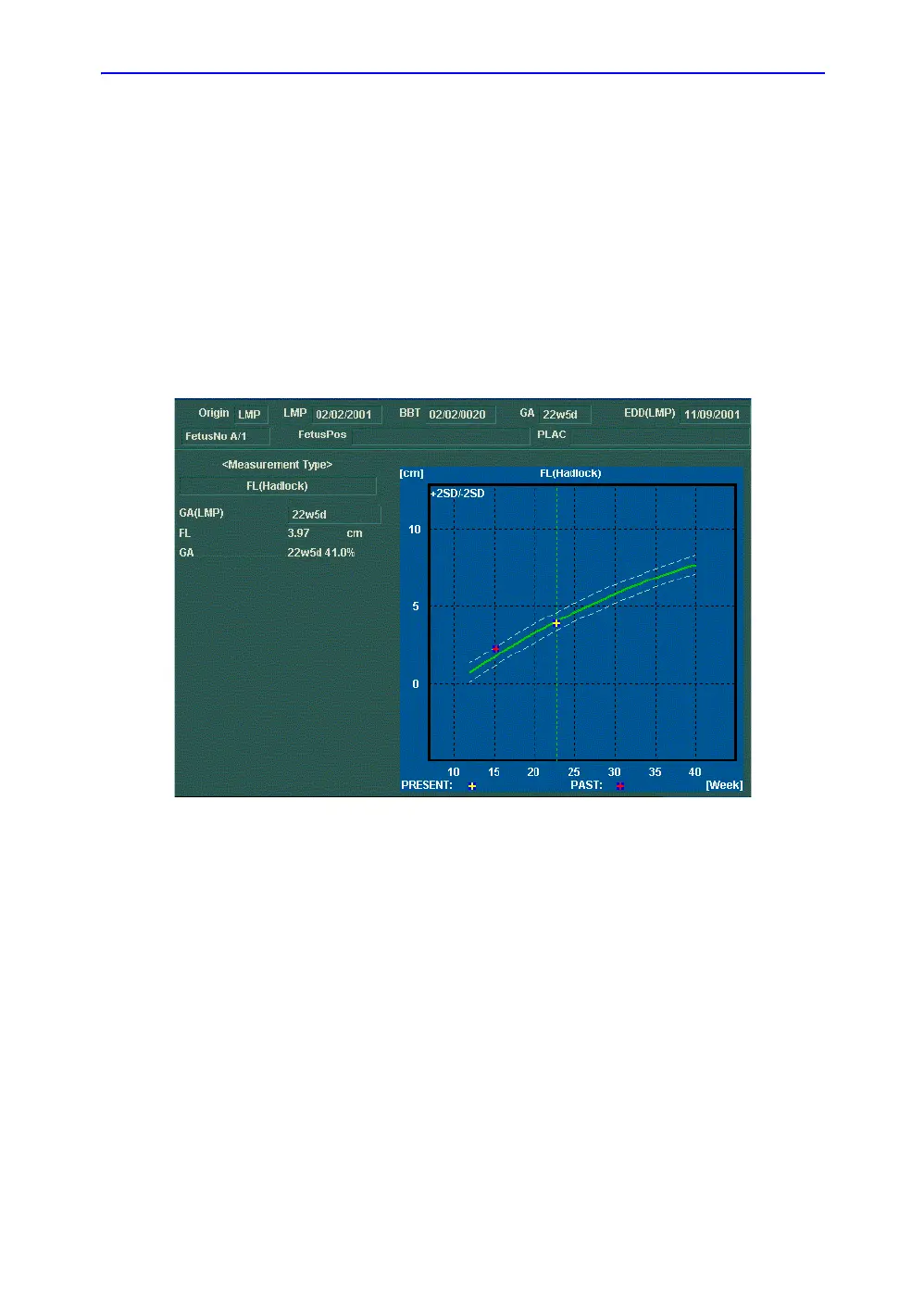

Figure 9-11. Fetal Trending on Fetal Growth Curve Graph: FL
The legend at the bottom of the graph shows the symbols and
colors that indicate Past and Present data.
