Recording Images
15-30 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
Transferring Patient Data to a PC
Transferring OB/GYN Patient Data to a PC
The LOGIQ 7 now supports the transfer of OB, GYN and
Vascular patient data to a PC.
NOTE: The LOGIQ 7 currently supports Viewpoint patient data
communications software for the PC.
Connecting the LOGIQ 7 to the PC
You need to connect a RS232C Converter and RS232C Cross
Cable to the USB port to connect a serial peripheral device to
the system.

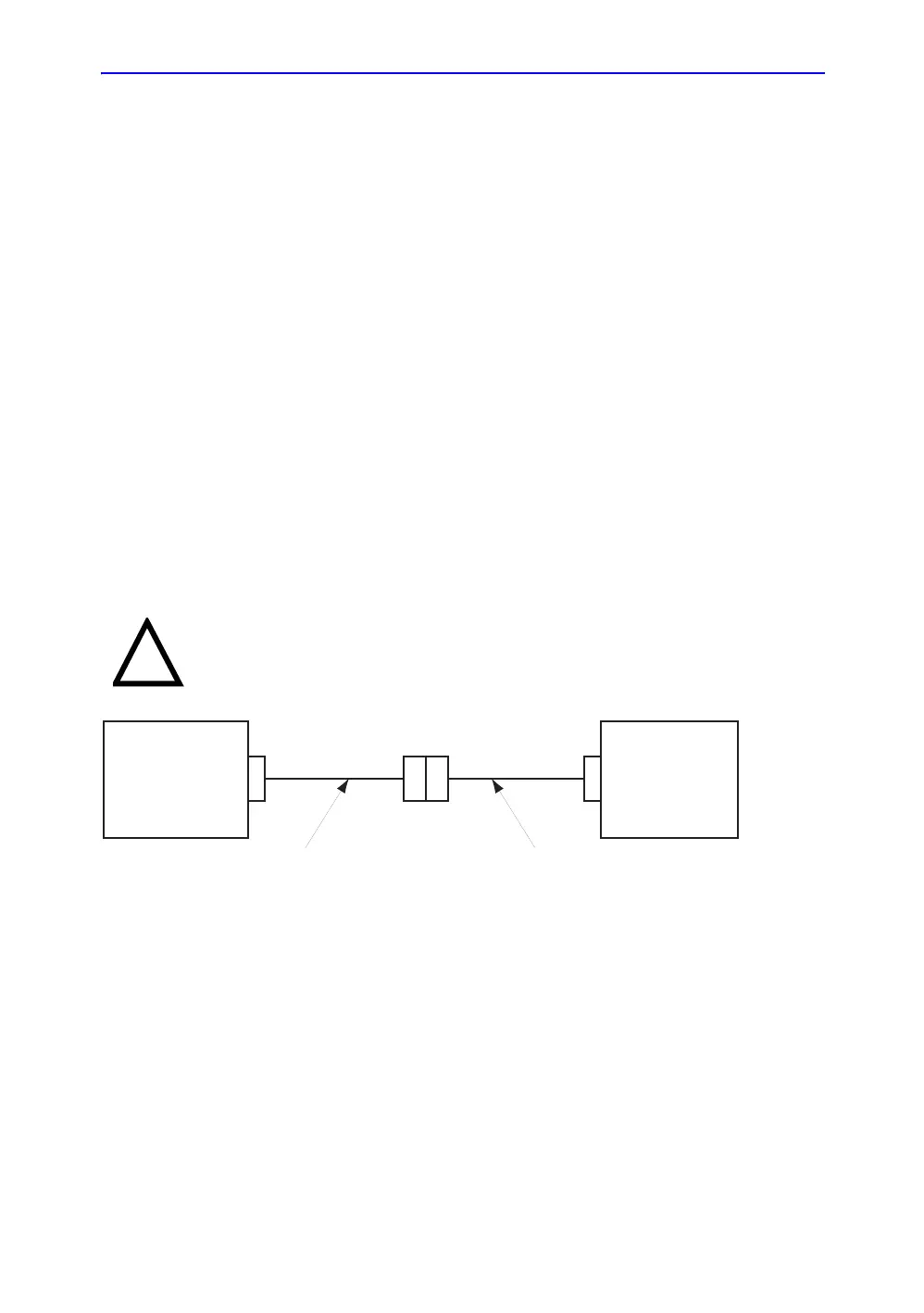

Figure 15-9. RS232C to USB Connection
CAUTION
Be sure to connect the converter and cable to VCR2 BEFORE
booting the system. If not, the LOGIQ 7 does not recognize the
peripheral device.
1. System 3. USB-to-RS232C converter
2. Peripheral device 4. RS232C Cross Cable (female 9 pin-
to-female 9-pin)
USB RS232C
12
3
4
