Preparing for a Biopsy
LOGIQ 7 Online Help 17-29
Direction 2392536-100 Rev. 1
Displaying the Guidezone (continued)

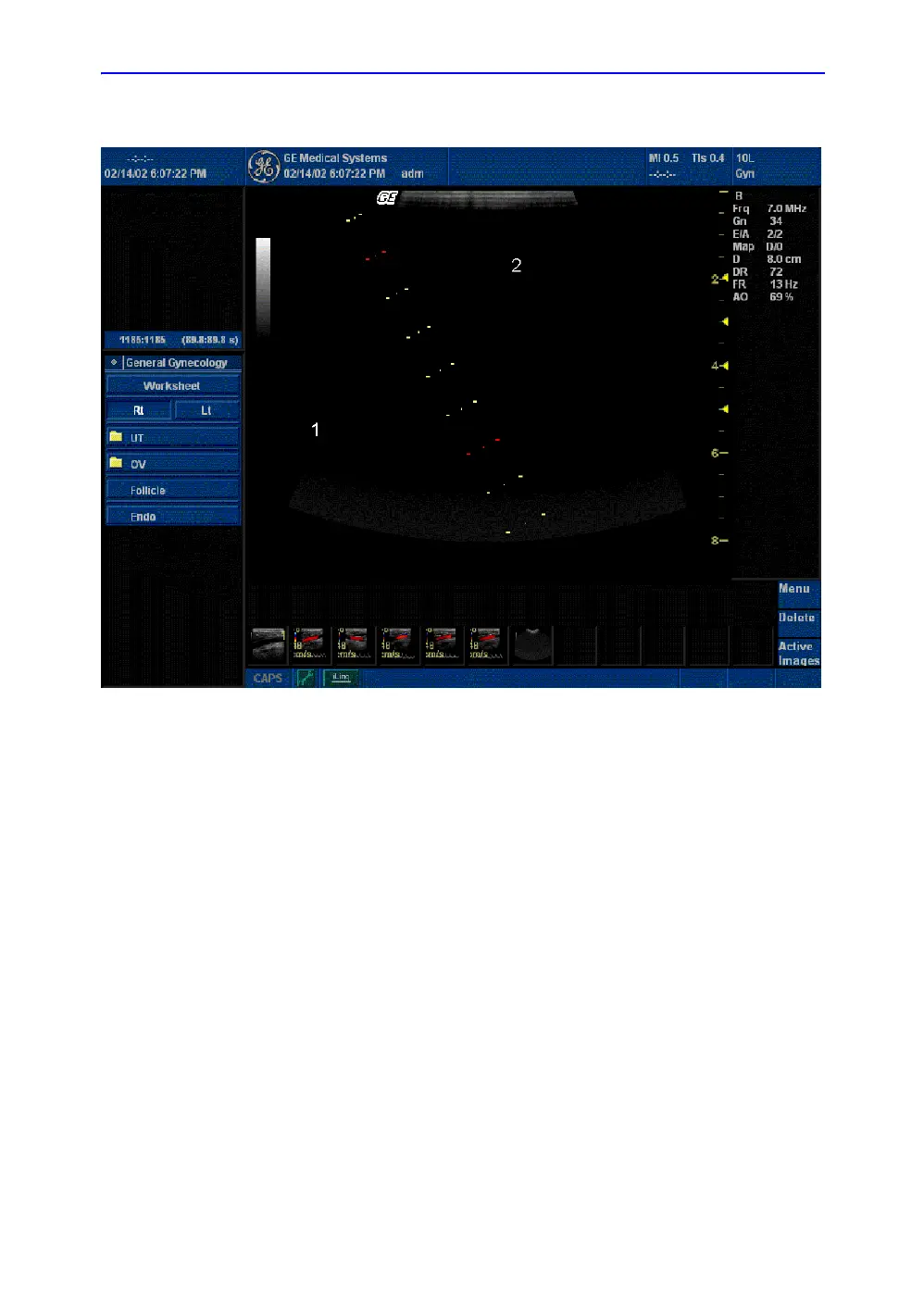

Figure 17-8. Biopsy Guidezones for the 10L Probe
1. 1 cm increments
2. 5 cm increments
The biopsy guidezone represents a path of the needle. The dots
which make up the guidezones is the depth readout where:
• Yellow represent 1 cm increments.
• Red represents 5 cm increments.
The display should be carefully monitored during a biopsy for
any needle deviation from the center line or guidezone.
NOTE: To set up biopsy guidezones, refer to Table 16-8 for more
details.
