GE HEALTHCARE
DIRECTION FC091194, REVISION 11 VIVID 7 SERVICE MANUAL
3 - 10 Section 3-3 - Receiving and Unpacking the Equipment
3-3-5 Unpacking Vivid 7
CAUTION
Two people are needed to unpack the unit because of its weight.
Attempts to move the unit considerable distances or on an incline by one person could result
in injury or damage or both.
Two people are required whenever a part weighing 16 kg (35 lbs) or more must be lifted or
pushed up or down a slope.

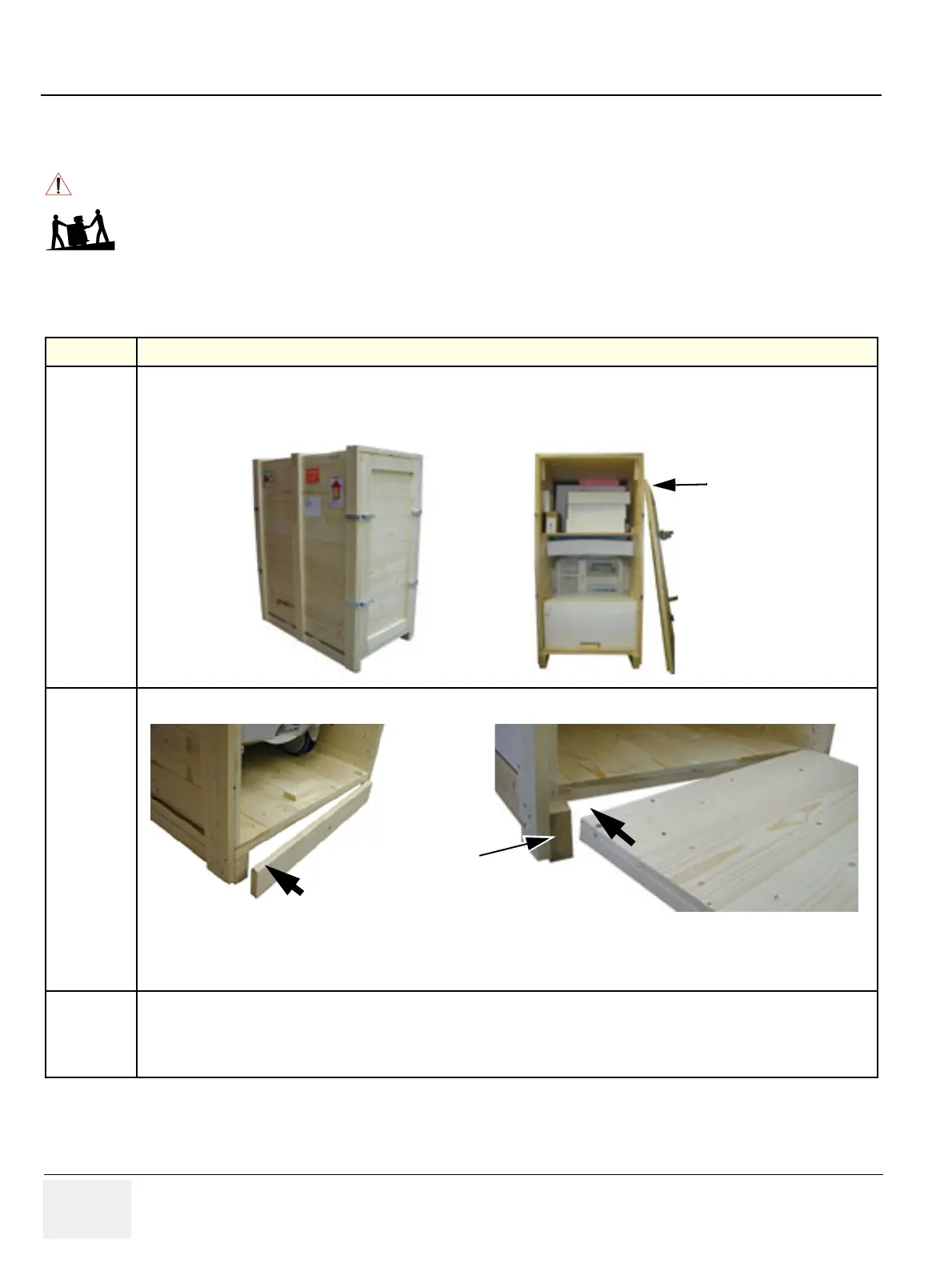

Table 3-7 Unpacking Vivid 7
Step Task
1.
Open the four hinges on each door and remove the doors.
One of the doors are used as ramp out off and into the transportation box.
On the first version of the Transportation Box, only the front door is meant to be used as a ramp. It has bevel cut in one end.
2. Place the front door as a ramp against the rear edge of the pallet.
3.
Carefully remove the accessory box, and any other items, including the wooden shelf above the scanners keyboard.
- Vivid 7 with LCD monitor: Part #10, support for the LCD monitor, can’t be removed at this time. Remove the rest of the packing
material from the transportation box.
- Vivid 7 with CRT monitor: Remove all the filling material, from the transportation box.
Front door bevel cut.
This end of the door
should be used as
the lower end of the
ramp.
On the first version transportation box, which
is no longer manufactured by GE, a 10 cm
board (not furnished) is placed as a support
under the upper end of the ramp.
On the second version transportation box, the ramp is placed
directly on the labank ends.
“Labank”
To Next Page
