GE HEALTHCARE
DIRECTION FC091194, REVISION 11 VIVID 7 SERVICE MANUAL
8 - 88 Section 8-12 - DC Power Replacement Procedure
8-12-5 DC Power Installation Procedure
1.) Slide DC Power module into its guides.
2.) Plug in HV cable and Power cable and secure Power cable with the retaining clasp.
3.) Push DC Power module gently in position.
4.) Fasten three (3) screws.
5.) Connect PCI cable to IMP2 Board or RFI Board.
6.) Install Front-End Cover.
7.) Install Right Side Cover, see "Side Covers Installation Procedure" on page 8-5.
8.) Do functional check-out, see chapter 4.
8-12-6 Verification - Functional Checks
• Please perform the tests specified in Section 8-20 "Verification - Functional Checks" on page 8-105.

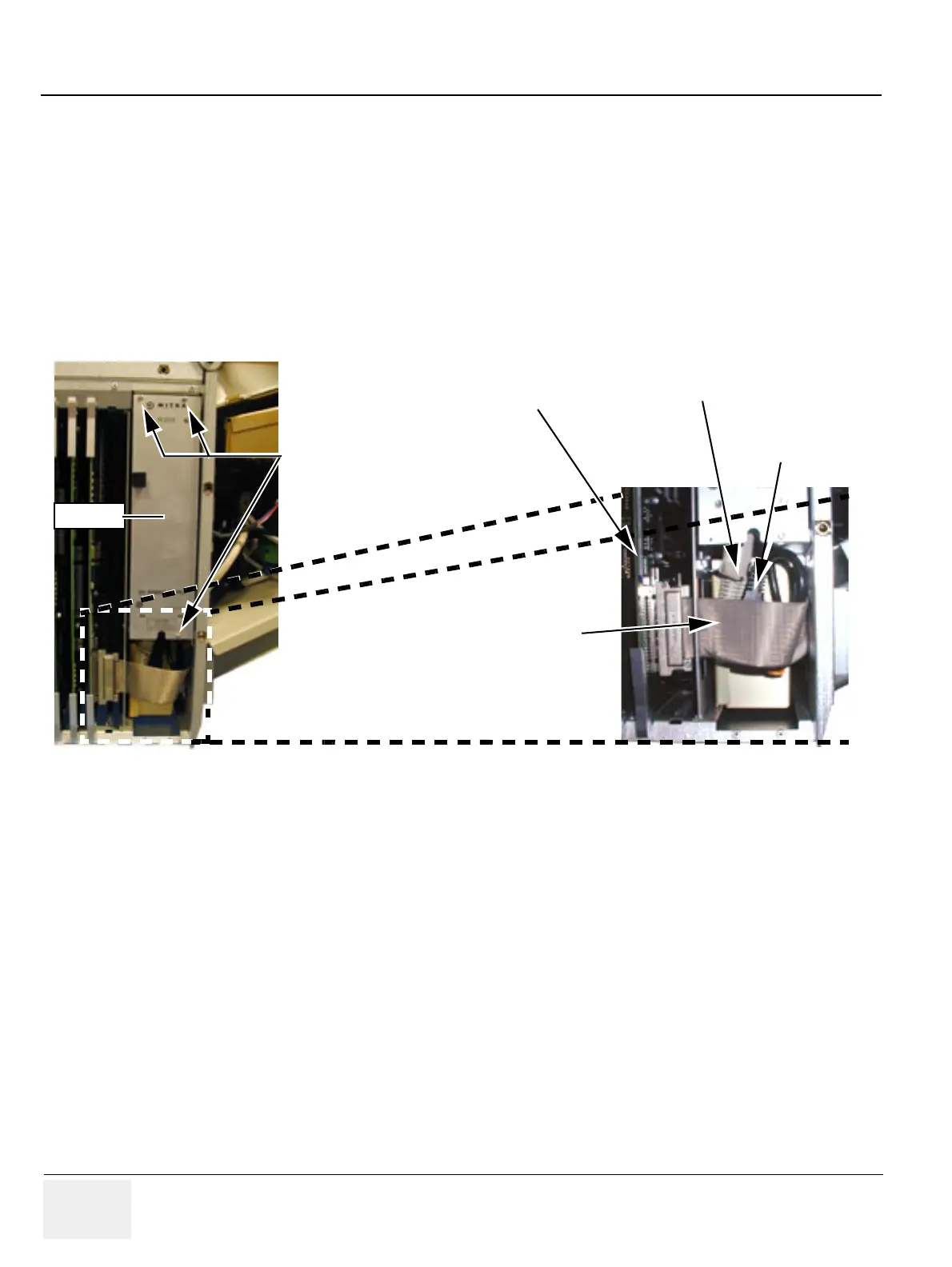

Figure 8-83 DC Power and Cabling.
Screws
HV power cable
DC power cable
PCI cable
IMP2 Board
DC Power
