GE Vivid 7 - FRU Parts for Back-End Processor Version 3.0 (BEP3.0)

GE HEALTHCARE
DIRECTION FC091194, REVISION 11 VIVID 7 SERVICE MANUAL
Chapter 9 - Renewal Parts 9 - 57
9-19-7 FRU Parts for Back-End Processor Version 3.0 (BEP3.0)

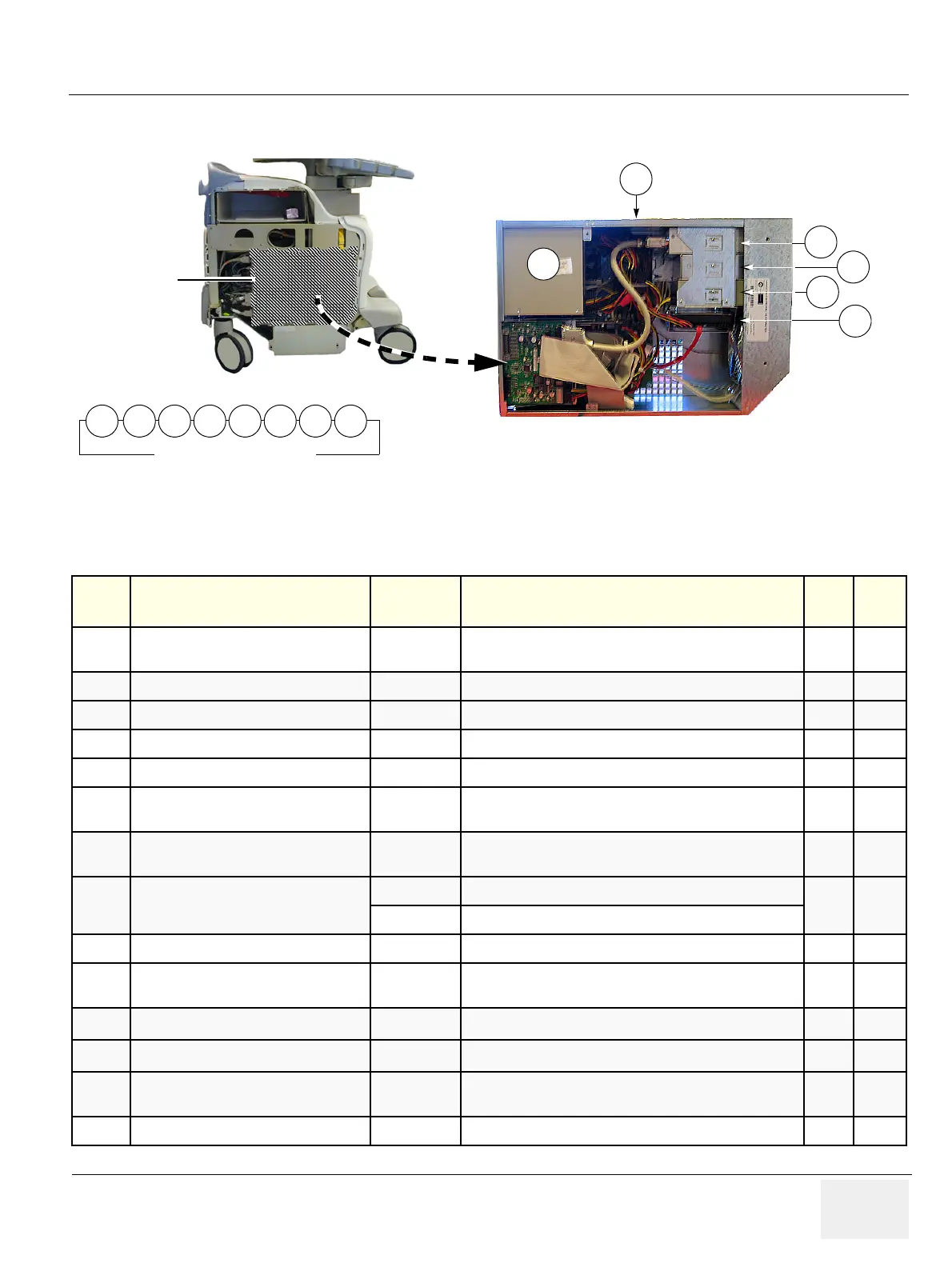

Figure 9-24 BEP3 Parts
Table 9-40 BEP3 FRU Parts
ITEM PART NAME
PART
NUMBER DESCRIPTION QTY FRU
1 BEP3 WITHOUT MO DRIVE 2404027
Back-End Processor without MOD, with Frame Grabber.
Use ONLY on units with RFI.
1Y
2 MO DRIVE, 9.1 GB FC200271 MOD DRIVE WITH MOUNTING BRACKETS 1 Y
3 BEP POWER SUPPLY 066E7502 Replaces 066E7500 1 Y
4 DVD DRIVE 2404028 BEP3 DVD FRU 1 Y
5 PATIENT IO MODULE (FRU) 2348186-22 1 Y
6
FAN FOR BACK END PROCESSOR
BEP3 (FRU)
2404028-11 For BEP3 1 Y
7 BEP3 HDD FRU 2404028-2
80 GBYTES SATA HARD DISK DRIVE FOR BEP3.
MOUNTING HARDWARE INCLUDED.
1 Y
8 PC2IPII
FC200312 Communication between BEP and FEP2 (PC2IP 2B)
1 Y
FC200656 Replaces FC200312
9 FALCON FRAMEGRABBER PCI 066E0333 Used in units with FEP2 1 Y
10 GRAPHIC CARD
066E0338/
066E0334
1Y
11 DGVIC TRAY, COMPLETE FC200676 1 Y
12 BEP CMOS BATTERY 2404028-7 1 Y
13
FILTER ASSEMBLY FOR BEP3
VIVID7
FC200631 1 Y
14 V7, BEP3 SIDE COVER WITH FAN FC200759 1 Y
BACK-END
PROCESSOR
PARTS NOT ILLUSTRATED
1
2
3
4
5
6
7
8 9 10 11 12 13 14
