5 - 112 Section 5-6 - Internal I/O
5-6-5 LEDs on Internal I/O
Light in nine green LEDs indicate that the respective DC Voltages are OK.
5-6-6 Fuses
All output voltages are fused.
5-6-7 Jumpers and Dip-switches
None

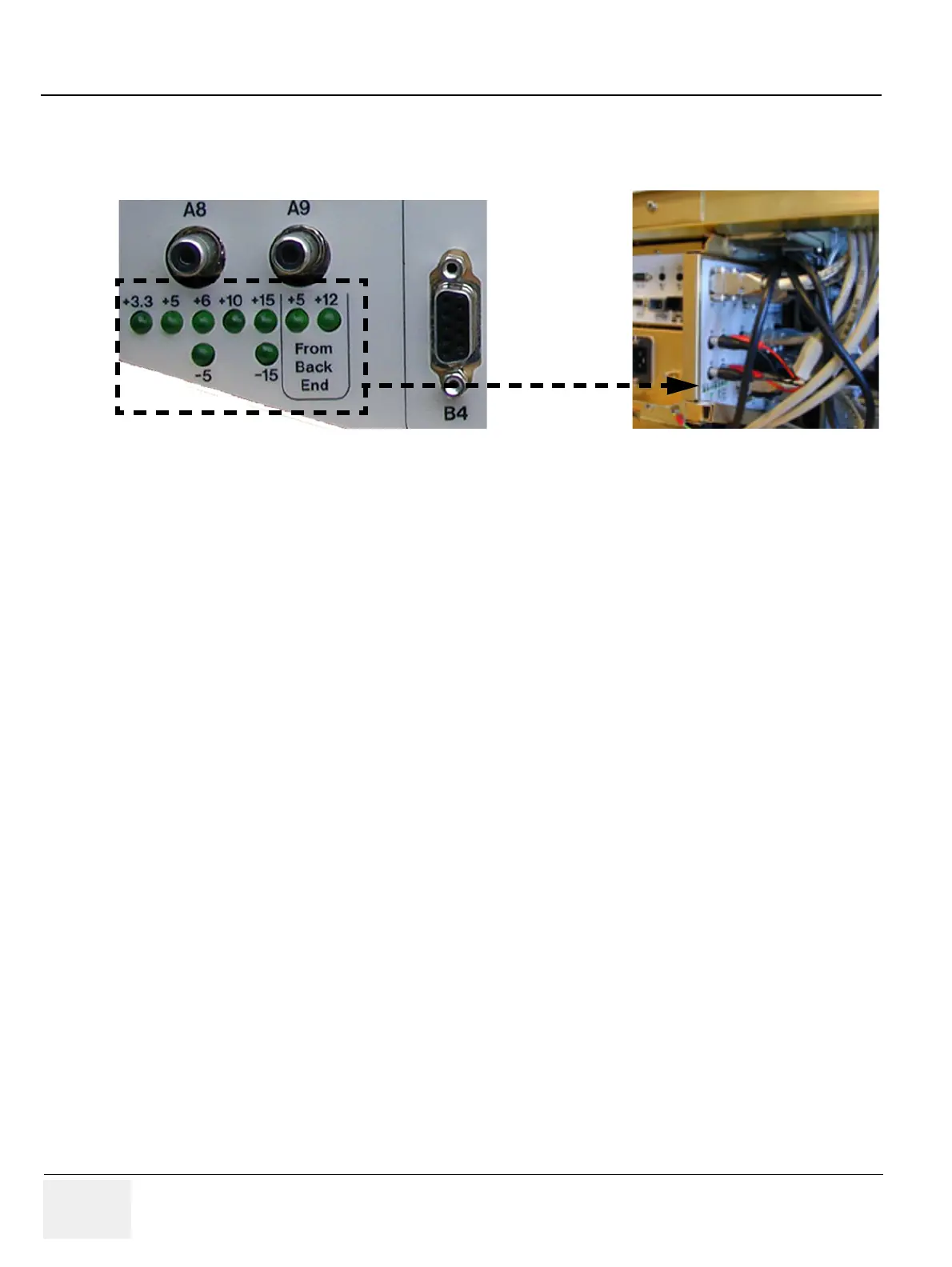

Figure 5-68 Green LEDs for Power Status, located on Internal I/O
