GE HEALTHCARE
DIRECTION FC091194, REVISION 11 VIVID 7 SERVICE MANUAL
8 - 8 Section 8-5 - Air Filter Replacement Procedure
Section 8-5
Air Filter Replacement Procedure
8-5-1 Manpower
One person, 30 minutes
8-5-2 Tools
No special tools are needed
8-5-3 Filter Removal Procedure
1.) Remove Filter Cover, see 8-3-3 "Upper Rear Cover Removal Procedure" on page 8-6.
2.) Pull out plastic plugs and remove the filter.
8-5-4 Filter Installation Procedure
Two different Plastic plugs have been used, see Figure 8-7 - Plug replacement, the one to the left on
early Vivid 7 scanners and the type to the right on newer units (both Vivid 7 and Vivid 7 PRO).
1.) Install a new or a cleaned filter (GE Vingmed Part No: FB307903).
Use plastic plugs as shown to the right in Figure 8-7 - Plug replacement. (GE Vingmed Part Number
for the plastic plug is: 080X6520.)
2.) Install Filter Cover, see "Upper Rear Cover Installation Procedure" on page 8-6.

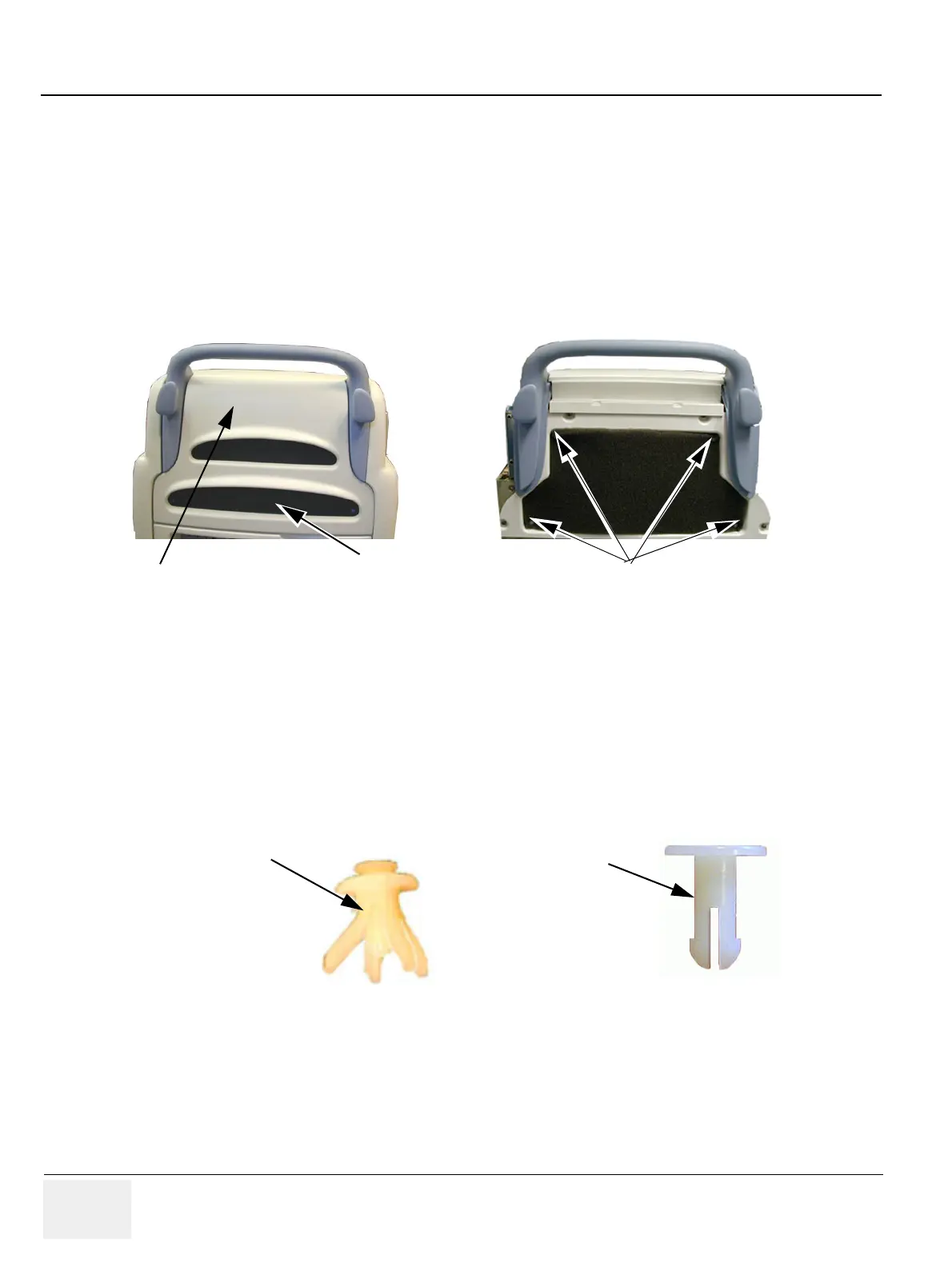

Figure 8-6 Filter Cover and Filter
Figure 8-7 Plug replacement
Filter
Plastic plugs
Filter Cover
Replace this plug…
with this plug
