GE Vivid 7 - FRU Parts for Back-End Processor Version 1 (BEP1)

GE HEALTHCARE
DIRECTION FC091194, REVISION 11 VIVID 7 SERVICE MANUAL
9 - 60 Section 9-19 - Back-End Processor
9-19-10 FRU Parts for Back-End Processor Version 1 (BEP1)

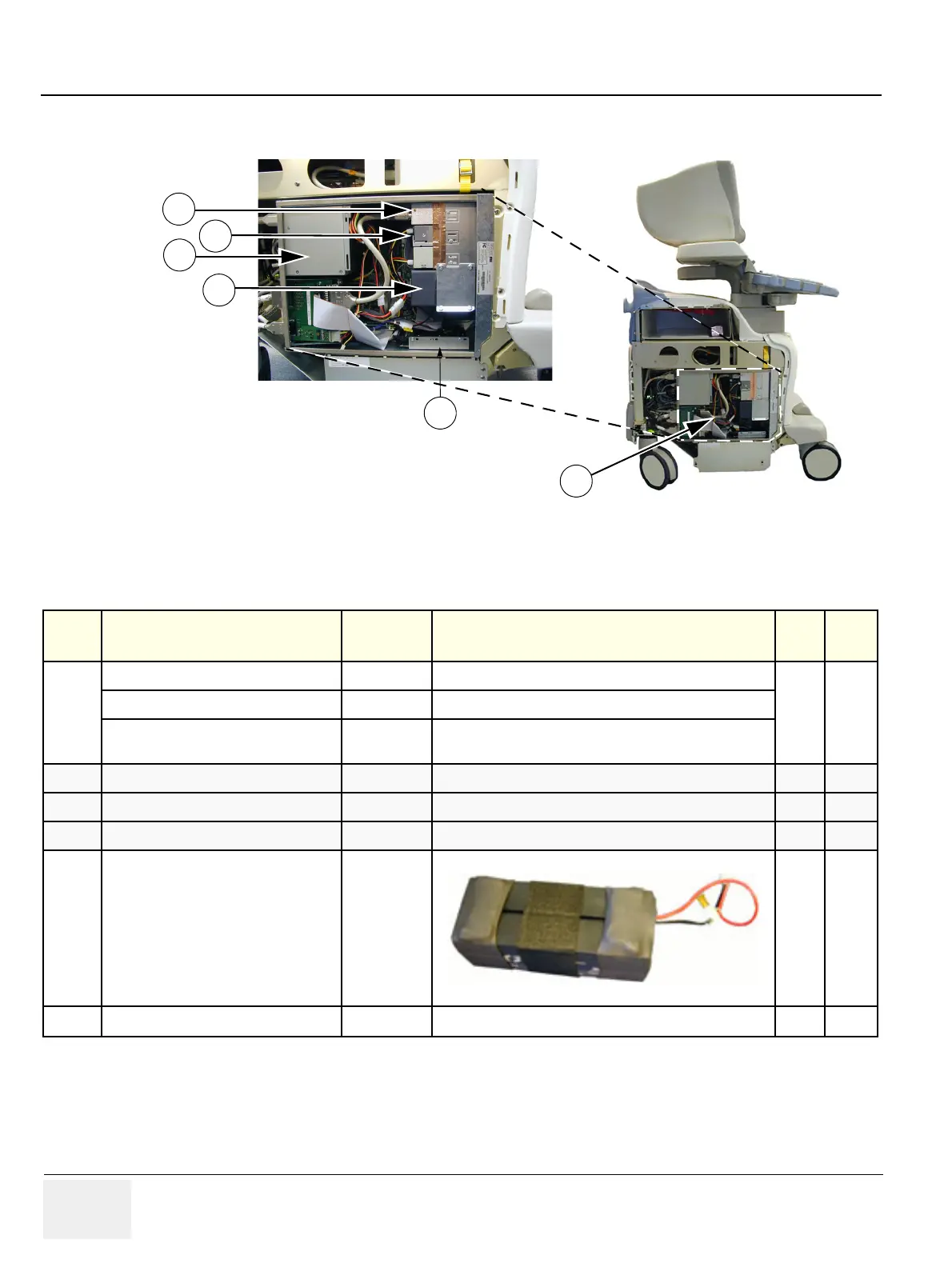

Figure 9-27 Back-End Processor Parts - BEP1
Table 9-43 Back-End Processor Parts - BEP1
ITEM PART NAME
PART
NUMBER
DESCRIPTION QTY FRU
1
BEP (BACK-END PROCESSOR) See Below First Version of Back-End Processor (BEP1)
1Y
BEP WITHOUT MO DRIVE 2266548 Back-End Processor without Magneto Optical Drive
BEP WITH MO DRIVE 2266548-2
Back-End Processor Complete, with 9.1 GB, 5 1/4” Mag-
neto Optical Drive
2 MO-DRIVE W/MOUNTING BRACKET FC200271 1 Y
3 POWER SUPPLY, 2.3 FRU 2348186-38 Power Supply for BEP (Rev. 2.3) 1 Y
4 PATIENT IO MODULE FRU 2348186-22 1 Y
5
BATTERY BACKEND PROCESSOR
ASM
2266548-5 1 Y
6 HARD DRIVE FOR BEP1.0 (FRU) 2366650 1 Y
1
2
3
4
5
6
