GE H
EALTHCARE
D
IRECTION
FC091194, R
EVISION
11
V
IVID
7 S
ERVICE
M
ANUAL
Chapter 8 - Re
placement Procedures
8 - 101
Section 8-17
Brake Pedal Replacement Procedure
8-17-1
Manpower
One person, 15 minute
s + travel
8-17-2
Tools
Torx screwdriver T-
20
8-17-3
Brake Pedal Replacement Procedure
1.)
Unscrew the four screws under the pedal.
2.)
Replace the pedal with a new one.
3.)
Fasten the four screws.

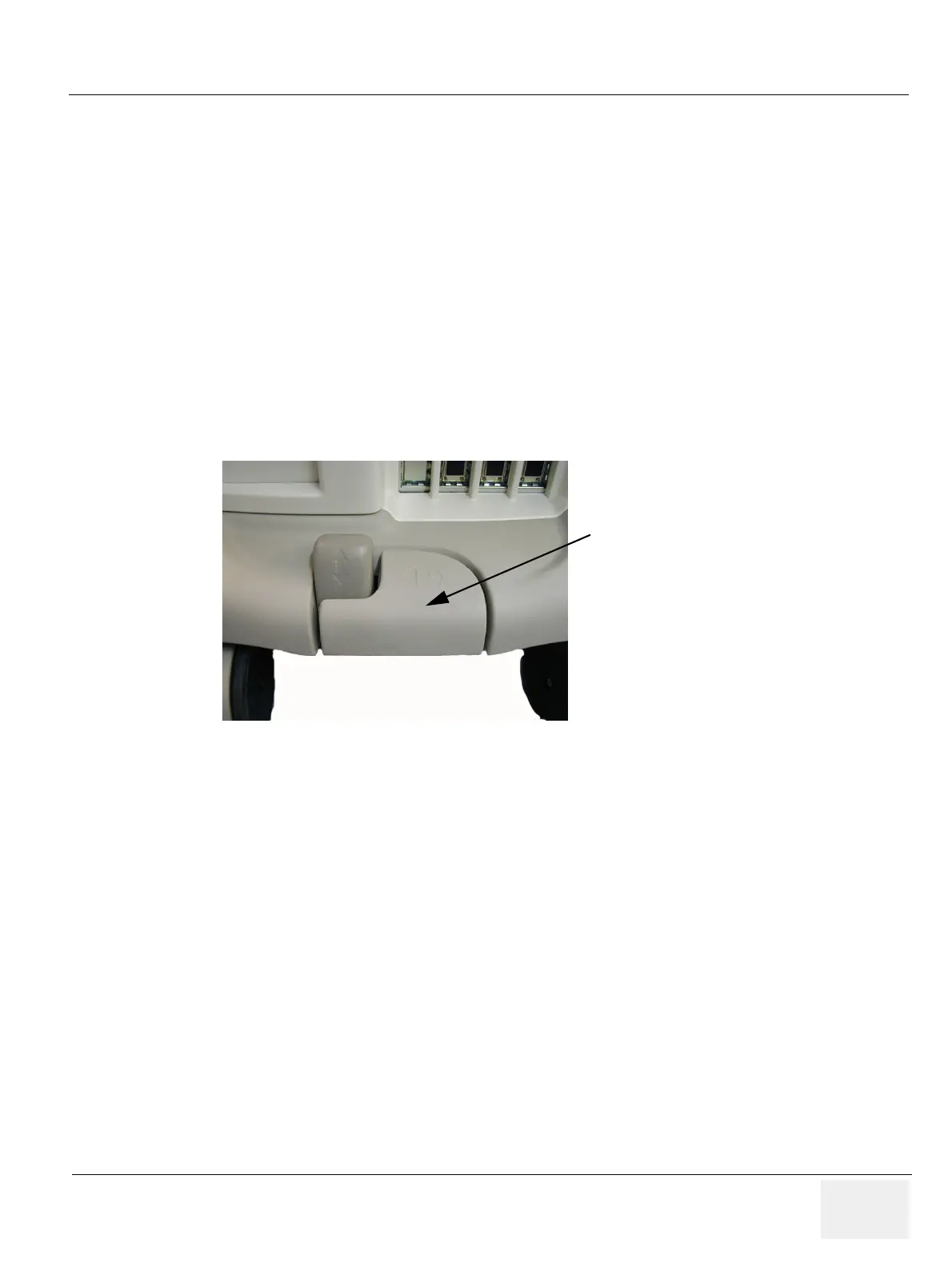

Figure
8-98 Brake Pedal
Brake Pedal
688
690
