Chapter 3 - System Setup 3 - 15
3-6-2 Electrical Specifications
3-6-2-1 Verification of the System’s Voltage Settings
Verify that the mains voltage specified for the unit is available on-site.
The Voltage setting for the unit is found on a label near the Mains Power Circuit Breaker at the rear of
the system, see Figure 3-4 on page 3-15.
See also Table 3-10 "Electrical Specifications for Vivid 7" on page 3-16.
WARNINGWARNING
CONNECTING A Vivid 7 UNIT TO THE WRONG VOLTAGE LEVEL WILL MOST LIKELY
DESTROY THE UNIT.

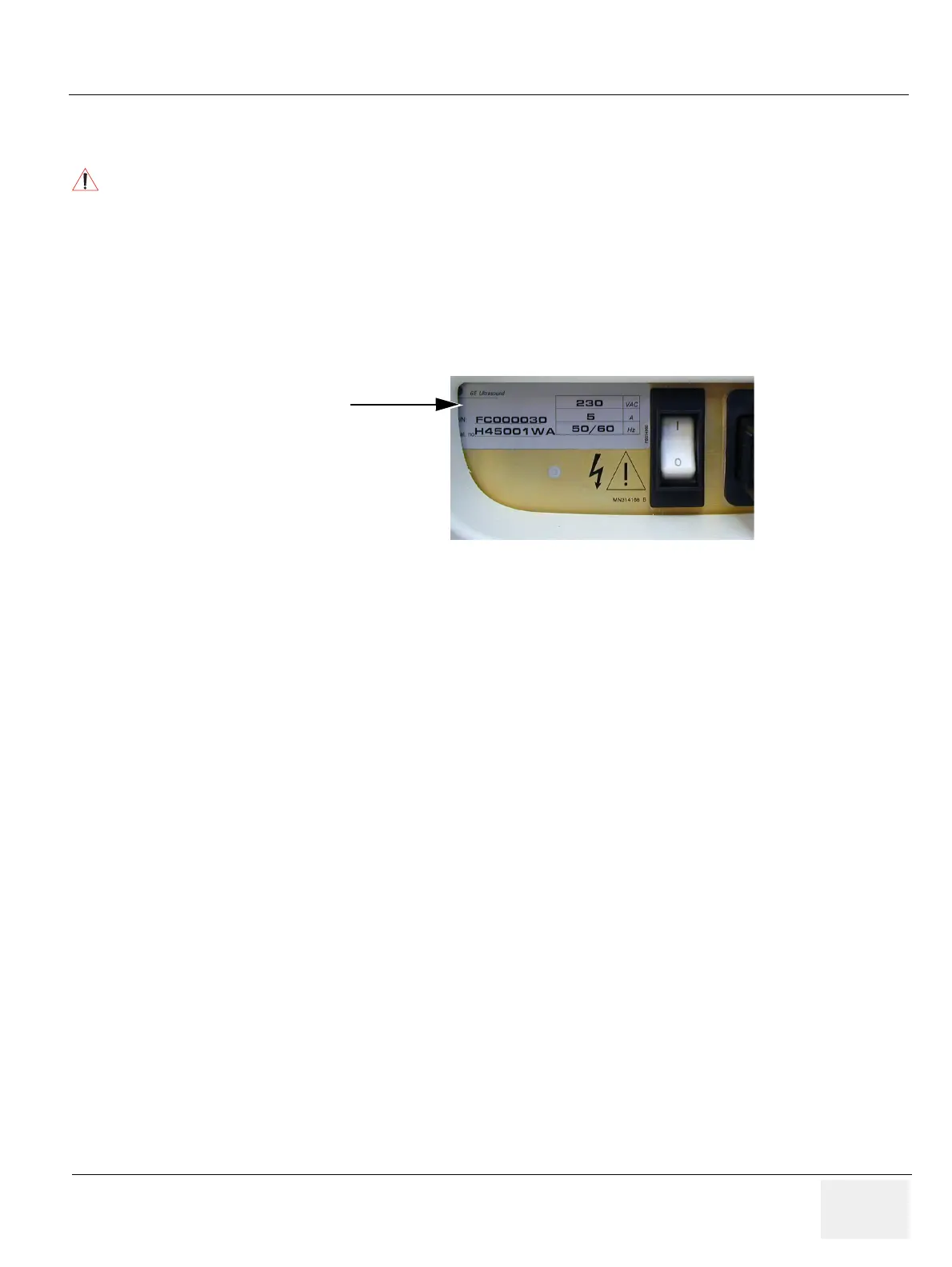

Figure 3-4 Mains Circuit Breaker and Power Rating Label
Power Rating Label
