GE Vivid 7 - Console Lock - VIVID 7 PRO

GE HEALTHCARE
DIRECTION FC091194, REVISION 11 VIVID 7 SERVICE MANUAL
9 - 24 Section 9-11 - Console Lock
9-11-3 Console Lock - Vivid 7 PRO

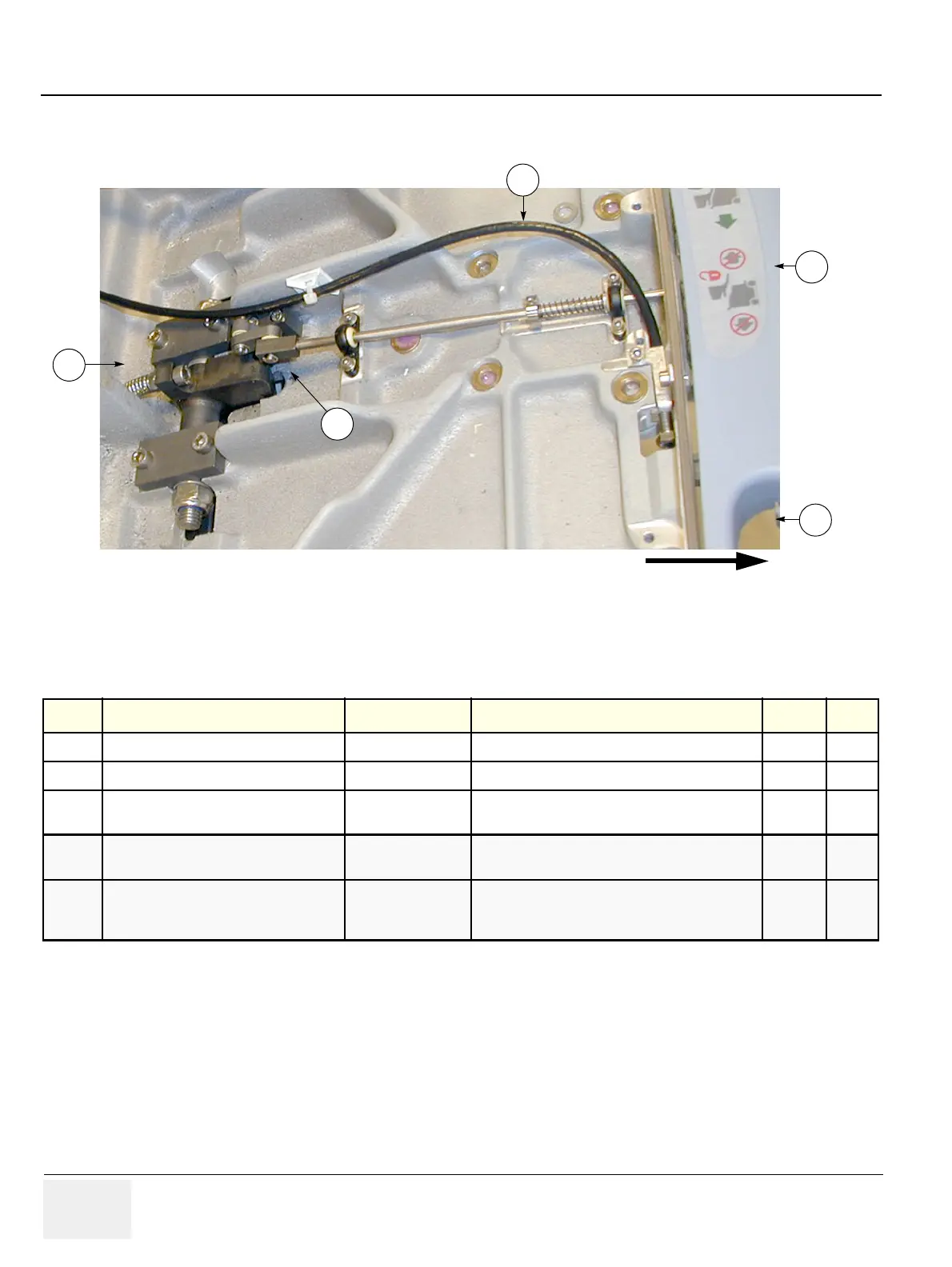

Figure 9-7 Top Console Lock - Vivid 7 PRO
Table 9-19 Top Console Lock - Vivid 7 PRO
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
1 TOP CONSOLE LOCK ASSY FB200350 1 Y
2 RELEASE LOCK FB200920 1 Y
3 HANDLE, Z-RELEASE FB307296
Up Down movement
1Y
4 HANDLE FB307295
Sideways movement
1 Y
5 WIRECABLE FB307375
Wire used when operating vertical movement of
Top Console
1 Y
FRONT OF VIVID 7 PRO
HANDLE
LOCATED
BELOW
HANDLE
LOCATED
BELOW
1
2
3
4
5
