GE Vivid 7 - Parts List for Bumper Kit, Frogleg

GE HEALTHCARE
DIRECTION FC091194, REVISION 11 VIVID 7 SERVICE MANUAL
Chapter 9 - Renewal Parts 9 - 103
9-30-4 Parts List for Bumper Kit, Frogleg
NOTE: Not used on Vivid 7 PRO.

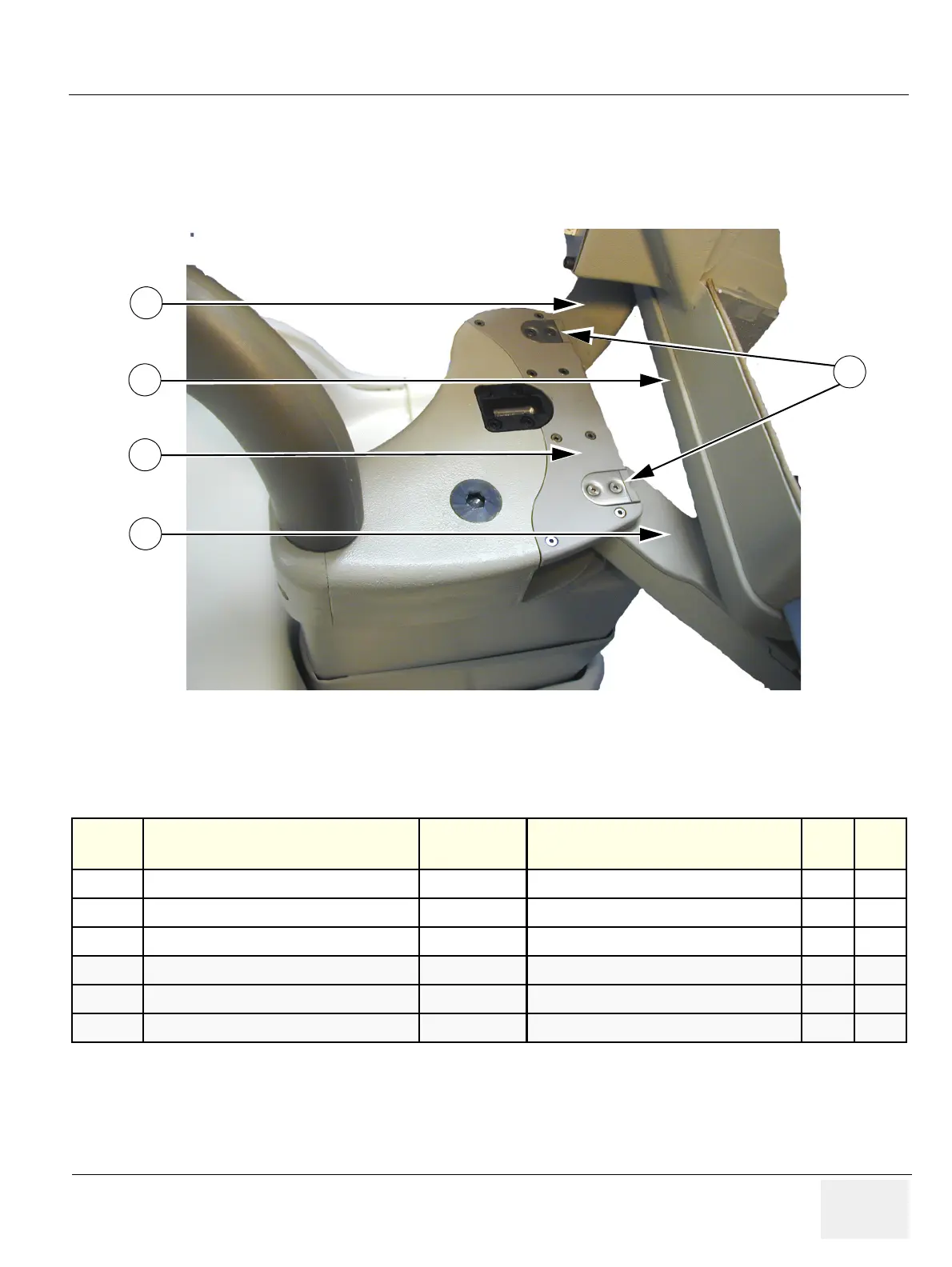

Figure 9-35 Bumper Kit, Frogleg, Base Seen From Above
Table 9-83 Bumper Kit, Frogleg - Part Number FC200086
ITEM PART NAME
PART
NUMBER DESCRIPTION QTY FRU
1 BUMPER CRASH PAD - Bumper Crash Rear 1 N
2 BUMPER INNER BOSS - - 1 N
3 BUMPER RIGHT FROGLEG - - 1 N
4 BUMPER LEFT FROGLEG - - 1 N
5 BUMPER INNER BOSS CRASH - - 1 N
BUMPER CONSOLE REAR - 1 N
1
2
3
4
5
