DIRECTION FC091194, REVISION 11 VIVID 7 SERVICE MANUAL
Chapter 9 - Renewal Parts 9 - 23
9-11-2 Console Lock - VIVID 7/VIVID 7 Dimension

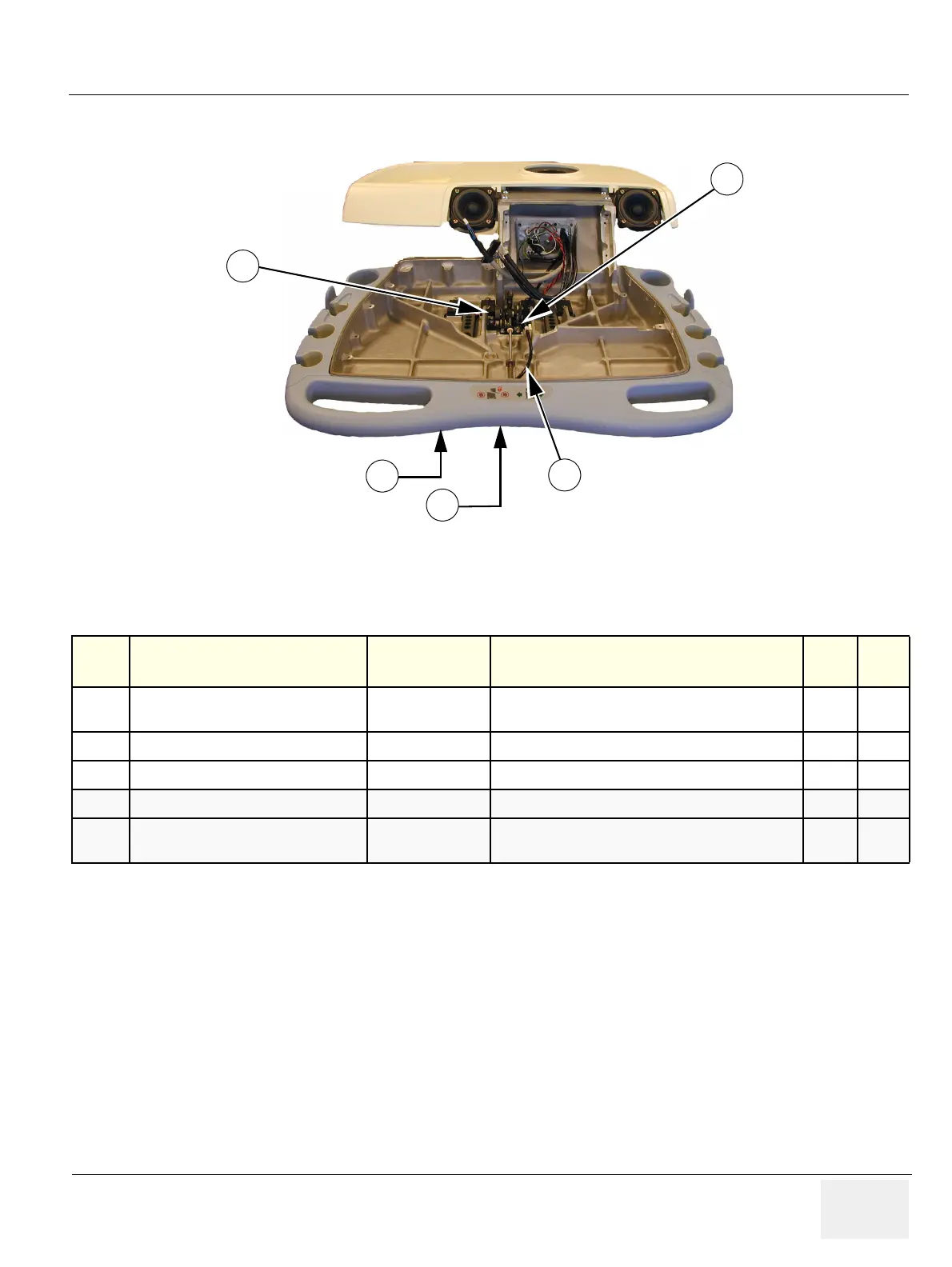

Figure 9-6 Top Console Lock - VIVID 7/VIVID 7 Dimension
Table 9-18 Top Console Lock - VIVID 7/VIVID 7 Dimension
ITEM PART NAME
PART
NUMBER DESCRIPTION QTY FRU
1
COMMON TOP CONSOLE LOCK
ASSY
FB200350 Not used on V7 PRO. 1 Y
2 RELEASE LOCK FB200920 Not used on V7 PRO. 1 Y
3 HANDLE, Z-RELEASE FB307296 1Y
4 HANDLE FB307297 XY-RELEASE 1 Y
5 WIRECABLE, GASSPRING FB307375
Wire used when operating vertical movement of Top
Console
1 Y
1
2
3
4
5
