GE HEALTHCARE
DIRECTION FC091194, REVISION 11 VIVID 7 SERVICE MANUAL
Chapter 8 - Replacement Procedures 8 - 95
Section 8-15
Front Casters Replacement Procedure
8-15-1 Manpower
1 persons, 30 minutes per Caster
8-15-2 Tools
• Torx screwdriver T-20
• Open end wrenches, 10 mm and 134 mm
• 5 mm hexagon key
• Bevel Edged Board and Wooden Wedge (service parts, see Table 9-77 "Service Kits, Overview" on
page 9-99.)
8-15-3 Preparations
1.) Shut down the system, see 4-2-3 "Power Shut Down" on page 4-7.
2.) Remove the Front Bumper, see "Front Bumper Removal Procedure" on page 8-100.
3.) Turn Front Casters as shown in Figure 8-92.
4.) Activate Direction Lock.
5.) Put the Bevel Edged Board on the floor.

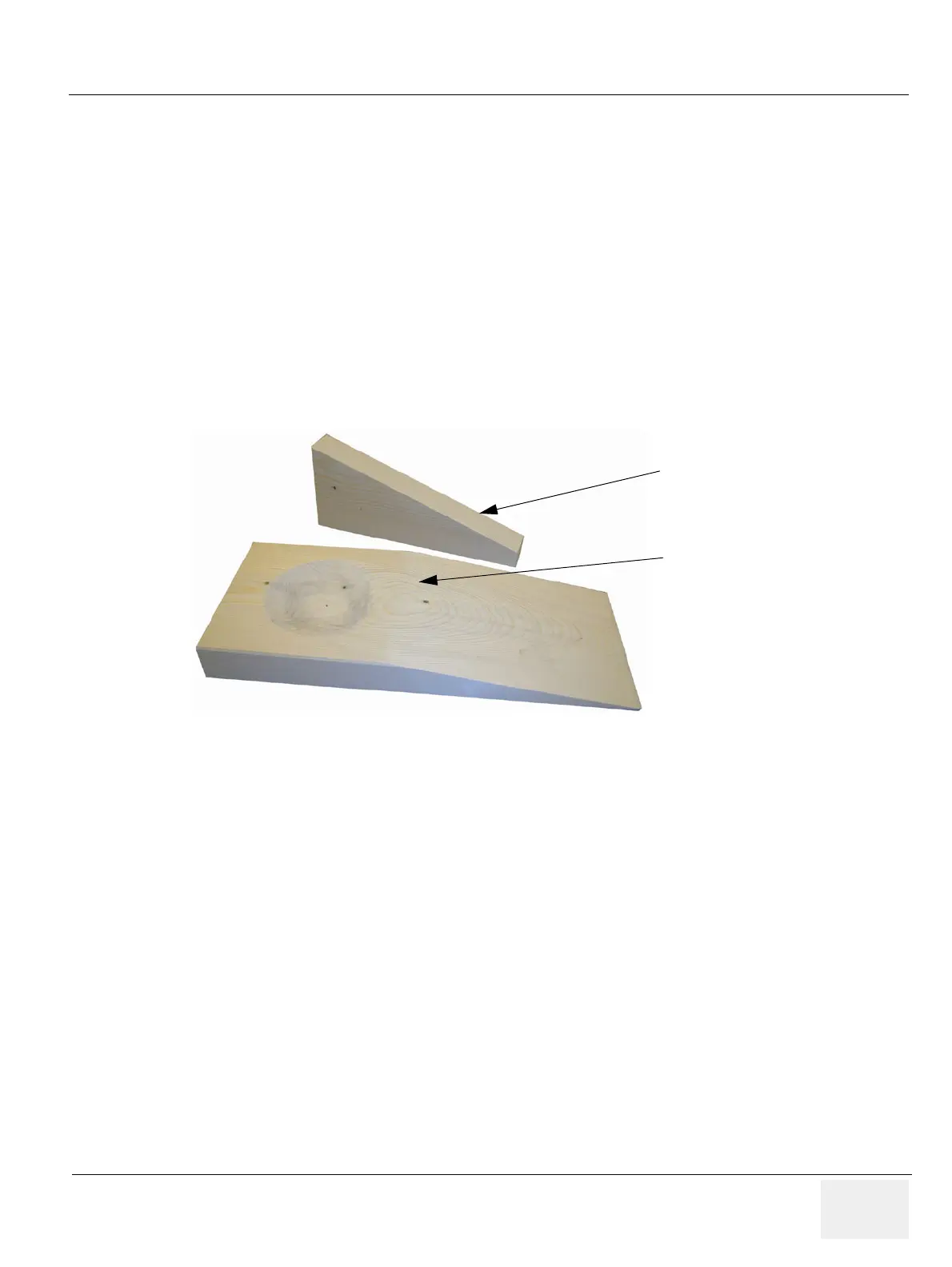

Figure 8-91 Bevel Edged Board and Wooden Wedge.
Wooden Wedge
Bevel Edged Board
