4-3-7 M Mode Checks
4-3-7-1 Introduction
4-3-7-2 Preparations
Use a phantom when doing these tests.
1.) Connect one of the probes, to the scanner’s left-most probe connector.
-See 3-6-5 "Probe Connection" on page 3-21 for info about connecting the probes.
-See Section 9-26 "Probes" on page 9-80 for available probes.
2.) Turn ON the scanner.
-See see 4-2-2 "Power ON/ Boot UP" on page 4-3 for info about booting the scanner.
The 2D Mode window is displayed (default mode).
3.) Press M-MODE
to bring up an M-Mode picture on the screen.

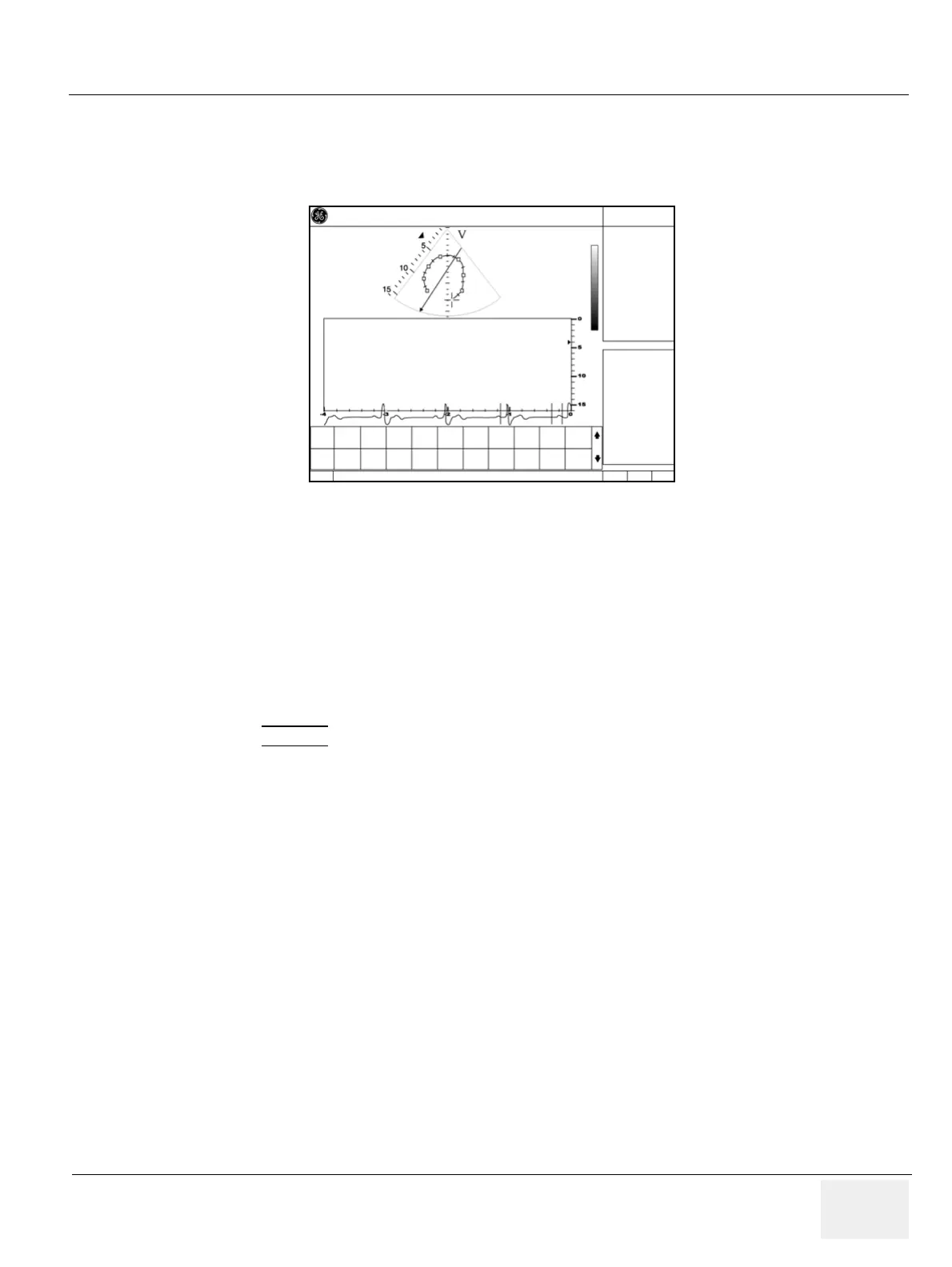

Figure 4-29 M-Mode Screen Example
To Next Page
