8 - 96 Section 8-15 - Front Casters Replacement Procedure
8-15-4 Front Casters Removal Procedure
6.) Pull the system backwards up the board incline.
7.) Turn the Rear Caster on the board in the direction as shown in Figure 8-93.
8.) Activate both Rear Brakes as shown in Figure 8-93.
WARNINGWARNING
Prior to elevating scanner, verify that the floating Operator Panel is locked in its lowest
position.
WARNINGWARNING
Use extreme caution as long as VIVID 7 is un-stable, not resting on all four Casters.

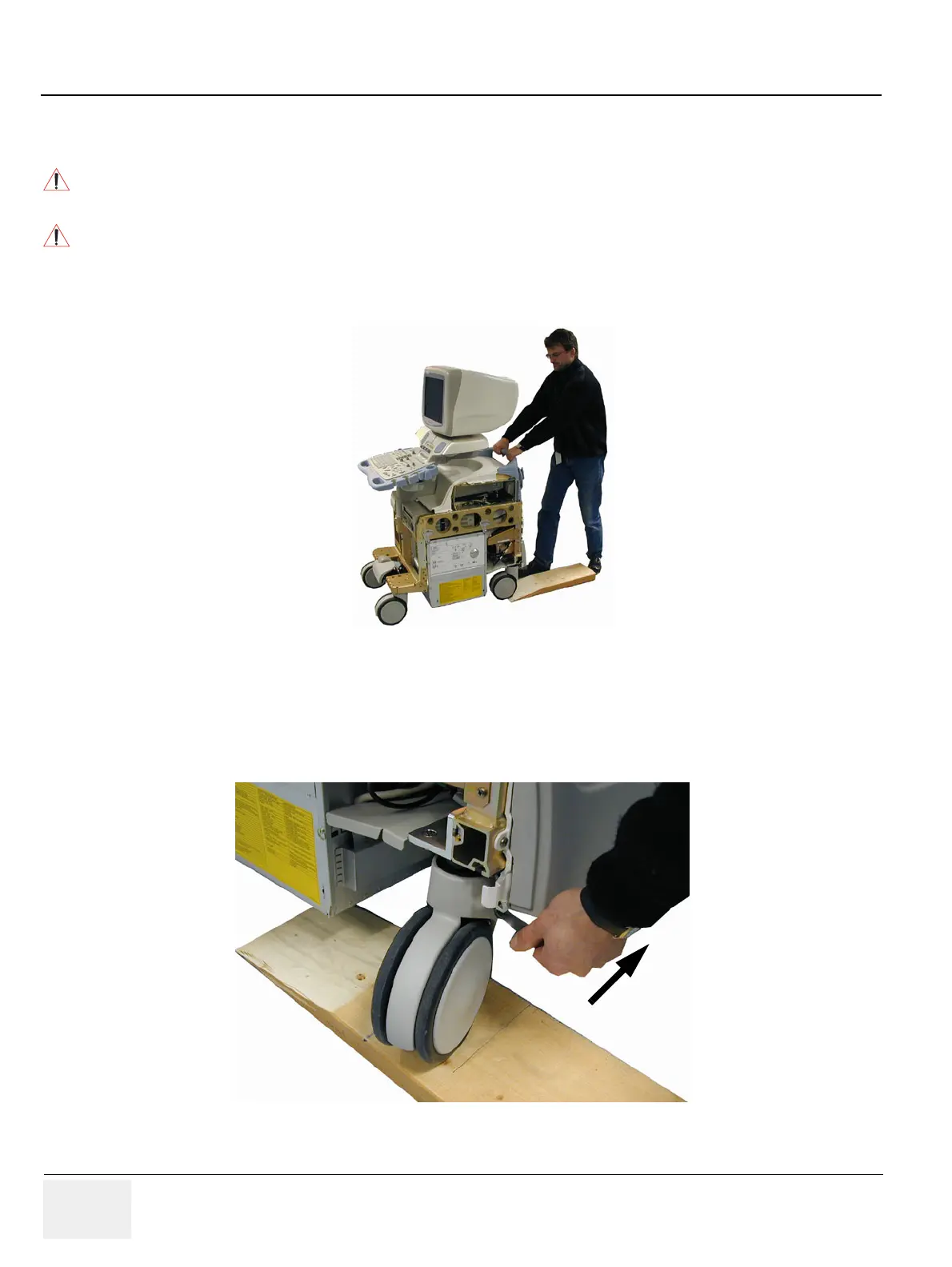

Figure 8-92 Pull system backwards up the board incline
Figure 8-93 Activate both rear brakes
