GE HEALTHCARE
DIRECTION FC091194, REVISION 11 VIVID 7 SERVICE MANUAL
Chapter 8 - Replacement Procedures 8 - 97
8-15-4 Front Casters Removal Procedure (cont’d)
9.) Put the Wooden Wedge under the Front-End Card Cage. This will stabilize the System with the right
Front Wheel free from the floor.
.

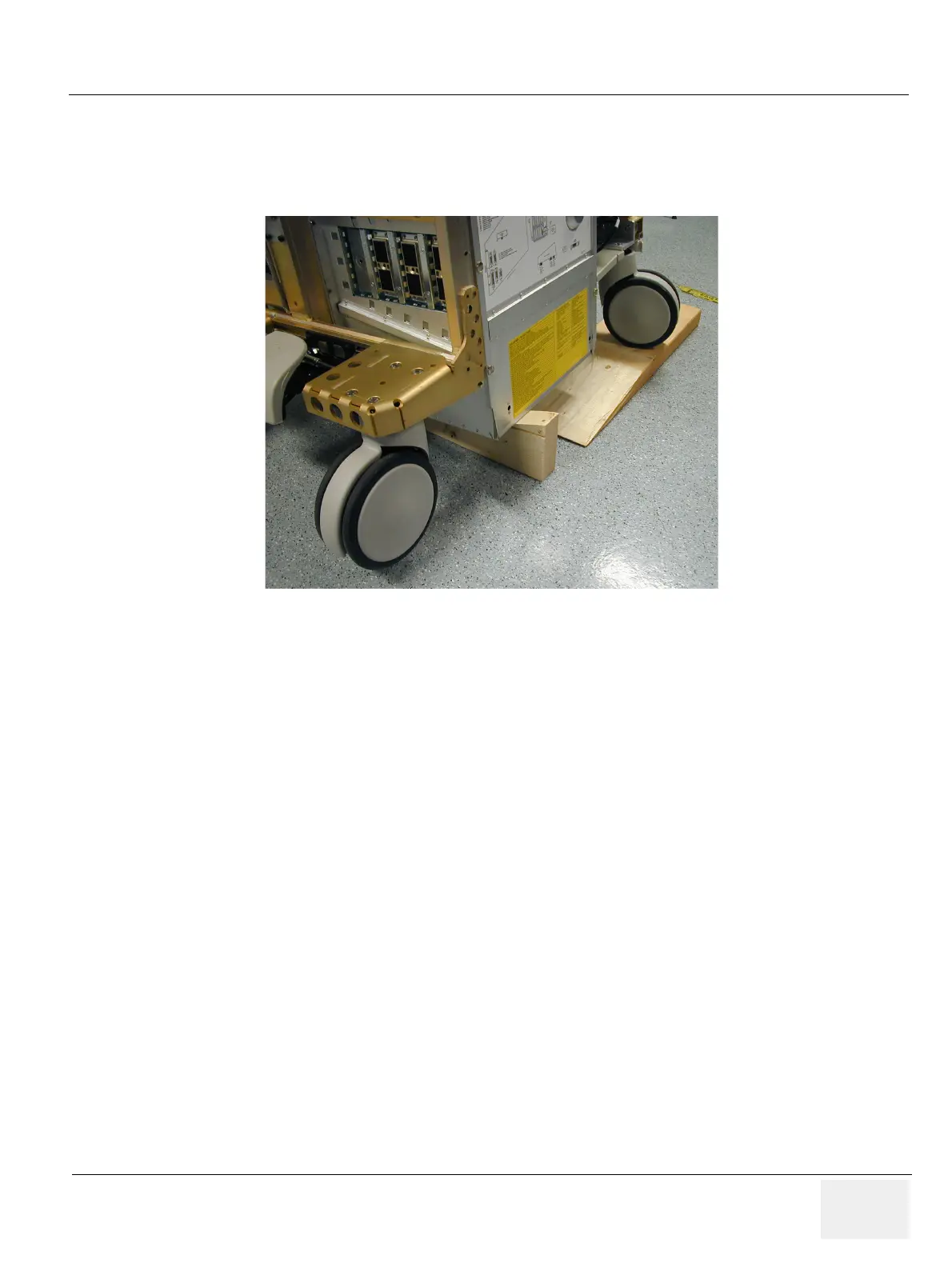

Figure 8-94 System stabilized with front wheel free from the floor
To Next Page
