GE HEALTHCARE
DIRECTION FC091194, REVISION 11 VIVID 7 SERVICE MANUAL
Chapter 8 - Replacement Procedures 8 - 5
8-2-5 Side Covers Installation Procedure
1.) Guide the top edge of the side cover so the hooks rest in the top cover retainer slots.
2.) Push back side in first position so it is locked in Lower Rear Cover.
3.) Push the front side in position so it is locked in Front Cover.
4.) With a large coin, turn the two bottom fasteners to the vertical position.Now, using a large
screwdriver, push in on these fasteners to lock them in place.
8-2-6 Verification - Functional Checks
• Please perform the tests specified in Section 8-20 "Verification - Functional Checks" on page 8-105.

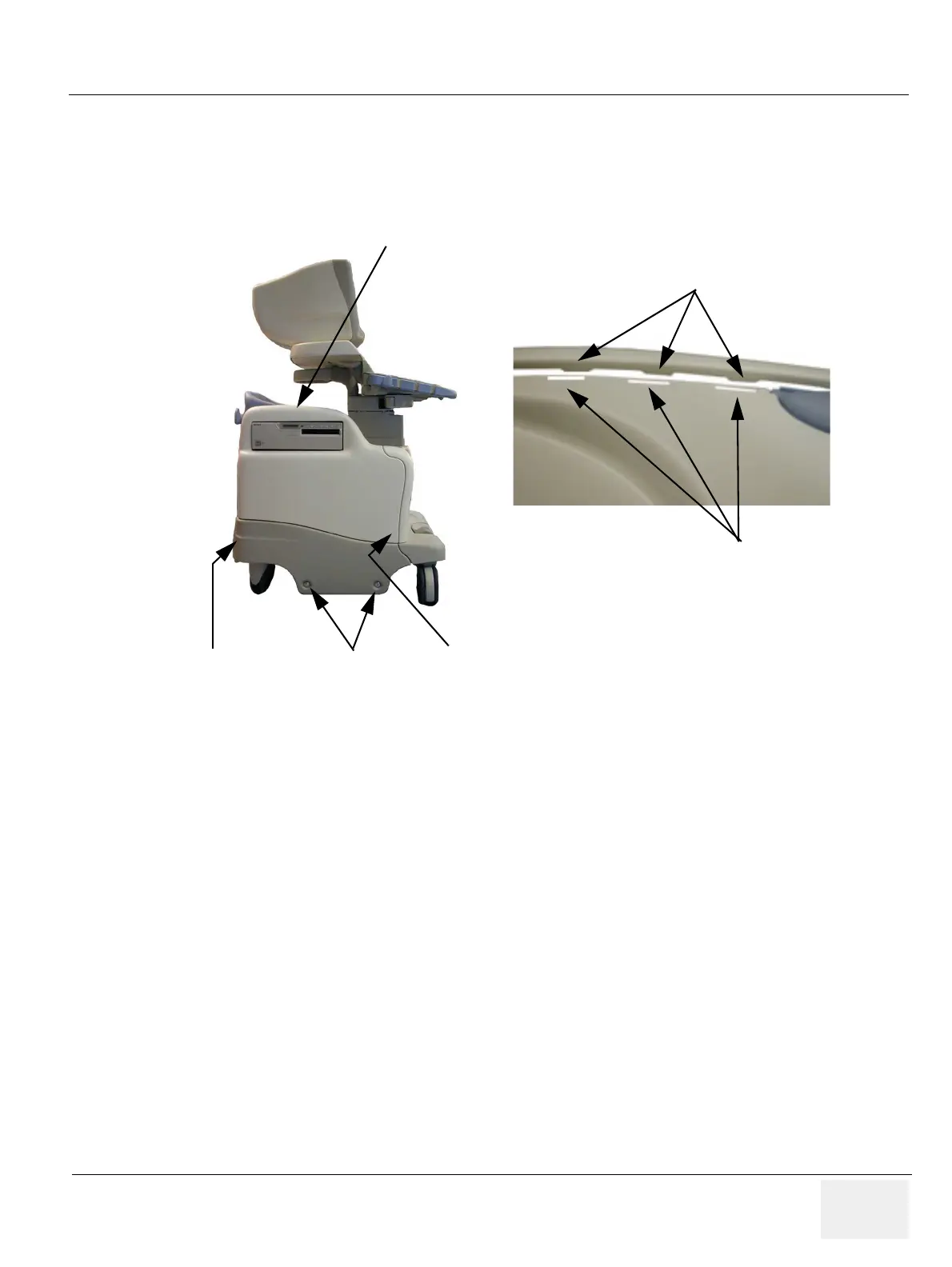

Figure 8-3 Side Cover installment
Top Cover slots
Side Cover hooks
1
2
3
4
