GE Vivid 7 - Page 396

GE HEALTHCARE
DIRECTION FC091194, REVISION 11 VIVID 7 SERVICE MANUAL
5 - 50 Section 5-3 - a Front-End Processor (FEP)
5-3-18 RF & Tissue Processor Board, RFT (cont’d)
5-3-18-7 Fuses and Dip-switches
None
5-3-18-8 LEDs and Jumpers

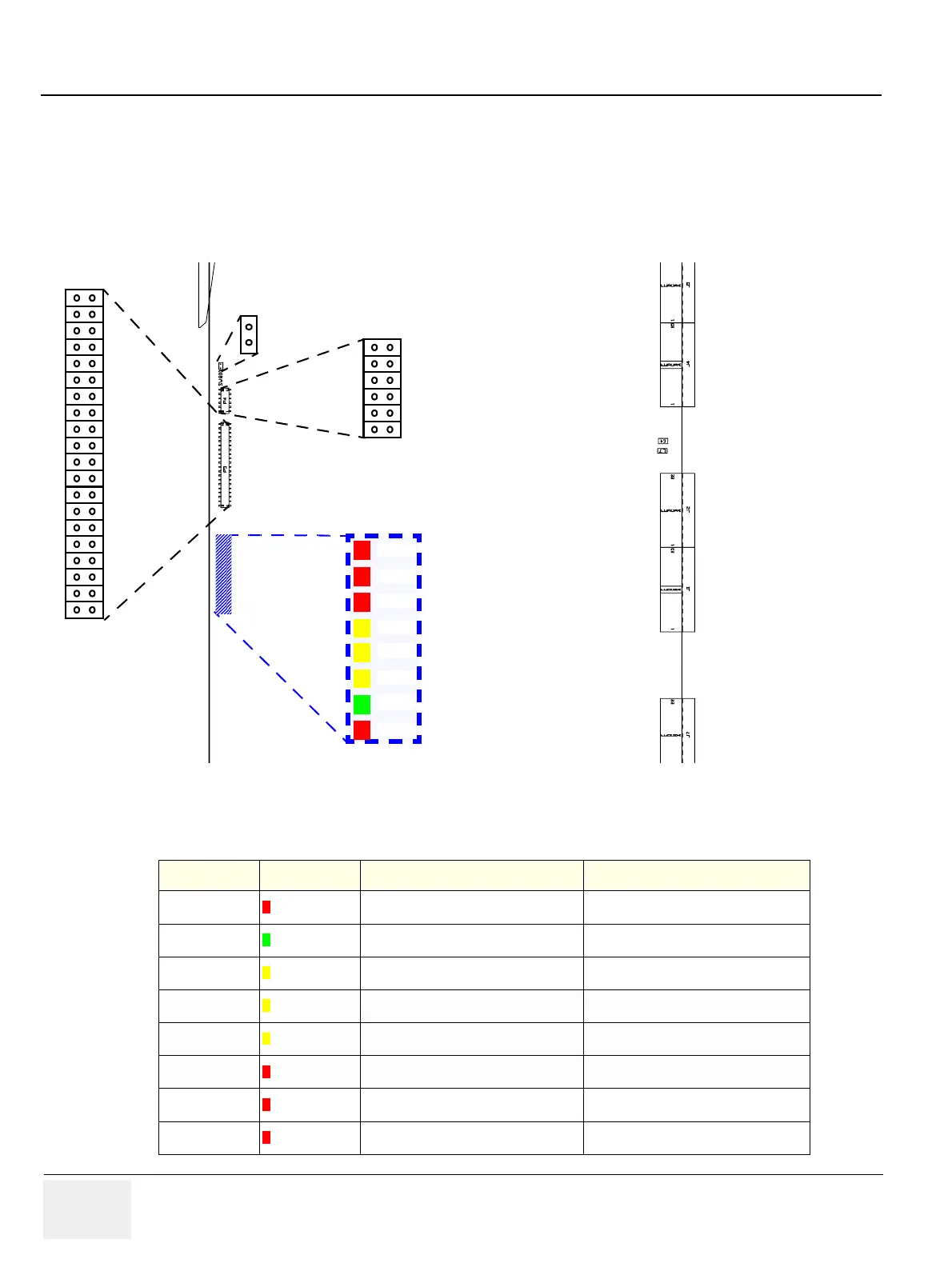

Figure 5-33 RFT, LEDs and Jumpers
Table 5-40 LEDs on the RFT Board
LED # LED COLOR DESCRIPTION NORMAL STATE
LD8
- Red
Board Failure OFF
LD7
- Green
Board OK ON
LD6
- Yellow
DSP Runs BLINKING
LD5
- Yellow
Data Out on PipeLink ON During Data Transfers to PipeLink
LD4
- Yellow
Spare OFF
LD3
- Red
Clock Problems OFF
LD2
- Red
Clock Problems OFF
LD1
- Red
Clock Problems OFF
LD1
LD2
LD3
LD4
LD5
LD6
LD7
LD8
P5
1
2
39
40
P4
1
2
11
12
SW800
