Chapter 5 - Components and Functions (Theory) 5 - 77
5-4-5-2 BEP4.2 wo/ 4D (Manufacturing & BEP3.2 Replacement) - Block Diagram

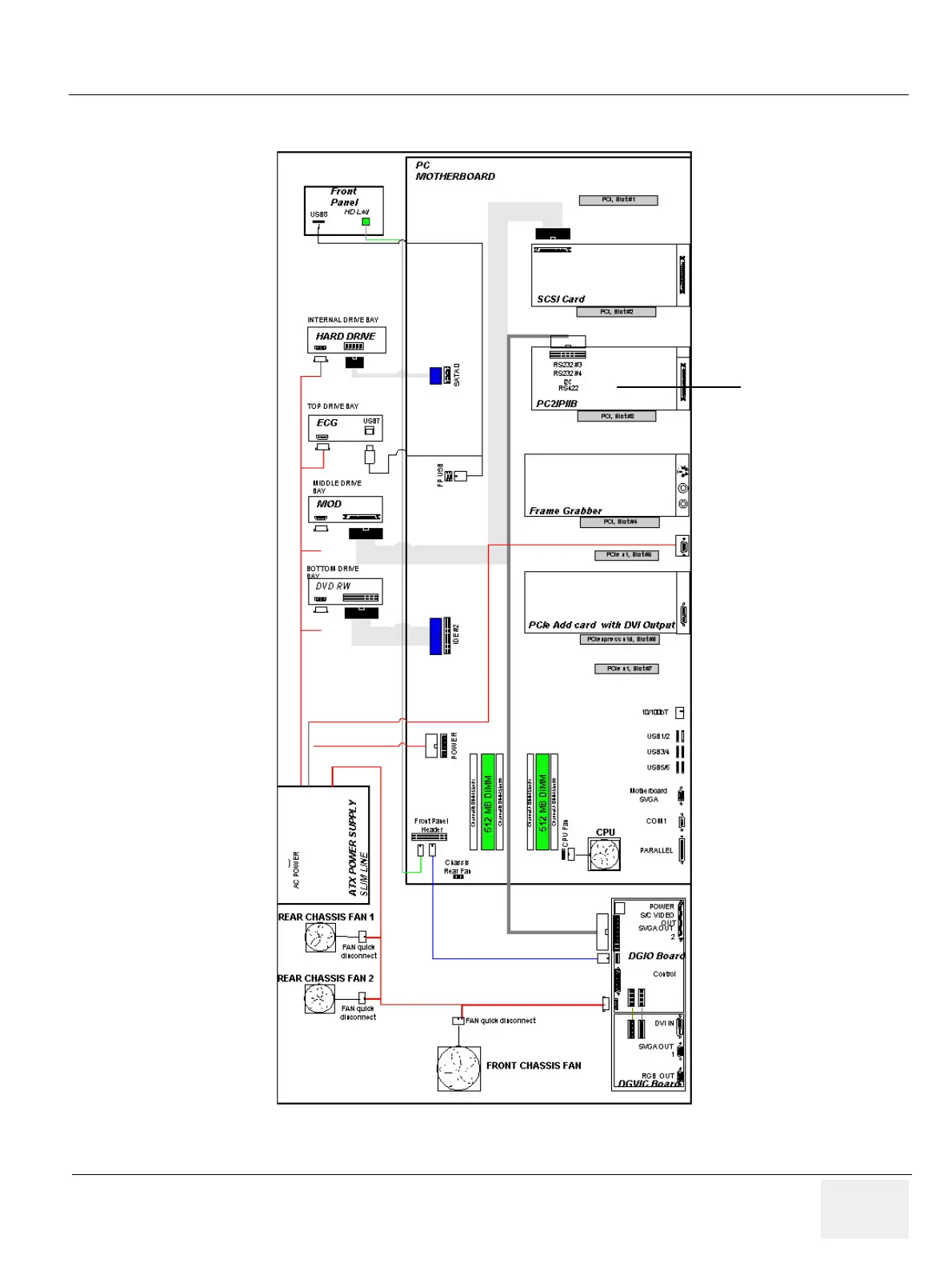

Figure 5-46 CPU/Back-End Processor Block Diagram (BEP4.2 without 4D)
PC2IP3 HAS BEEN
INTRODUCED IN
MANUFACTORING.
