GE HEALTHCARE
DIRECTION FC091194, REVISION 11 VIVID 7 SERVICE MANUAL
5 - 114 Section 5-7 - Top Console with Monitor and Operator Panel
5-7-1 General Description (cont’d)

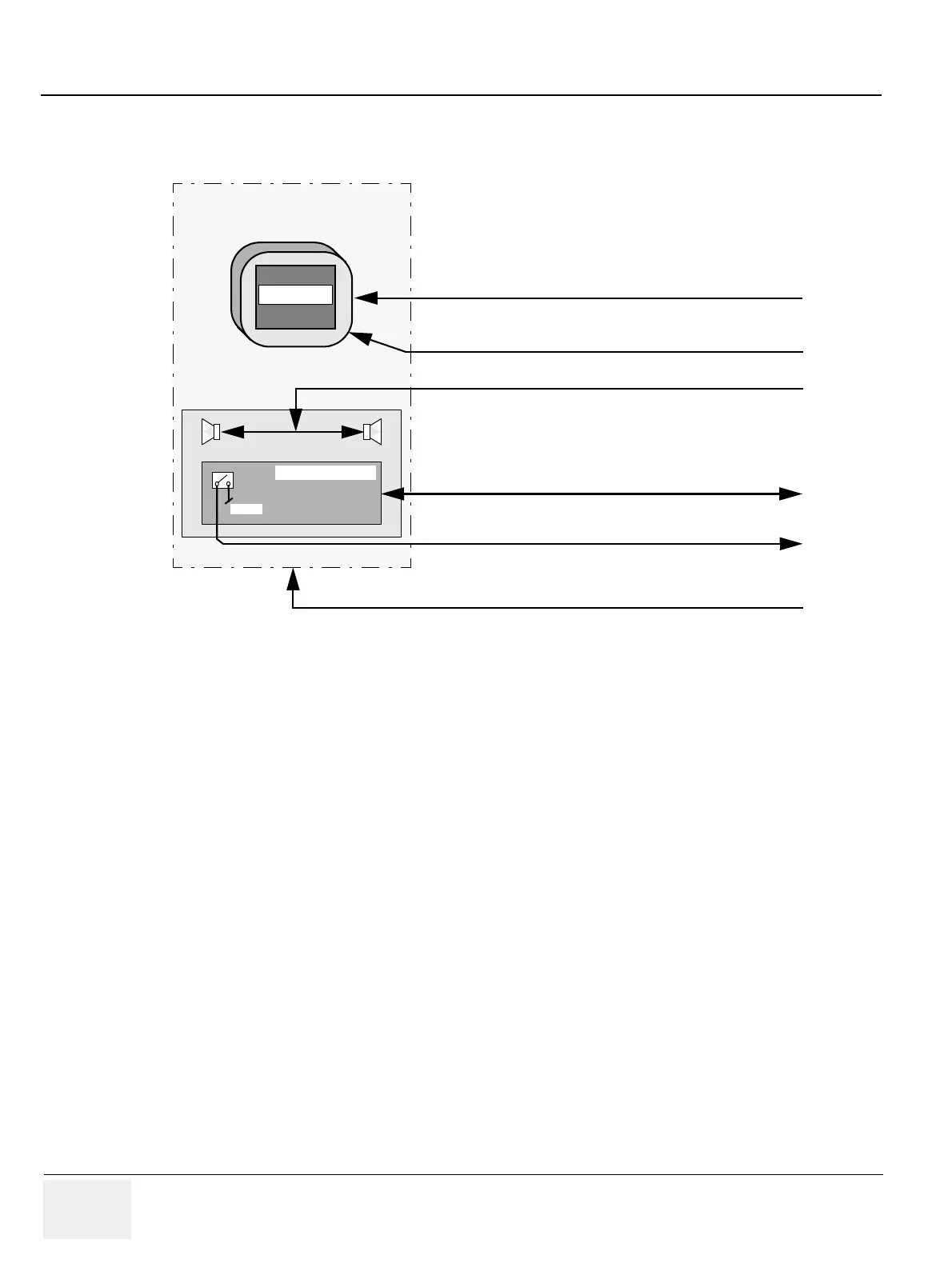

Figure 5-70 Top Console Block Diagram
Monitor
Operator Panel
Top Console
ON/OFF
Stereo Audio from Internal I/O
Speaker
SVGA from Back-End Processor (via Internal I/O)
Speaker
ON/OFF to Internal I/O
USB from/to Back-End Processor (via Internal I/O)
115 VAC from AC Distribution Box (AC Power)
12VDC from Back-End Processor, +15VDC from Card Cage (both via Internal I/O)
GND
To Next Page
