5 - 134 Section 5-11 - Power Distribution
5-11-3-3 Inputs
AC Voltage. Plug P1, 230 VAC

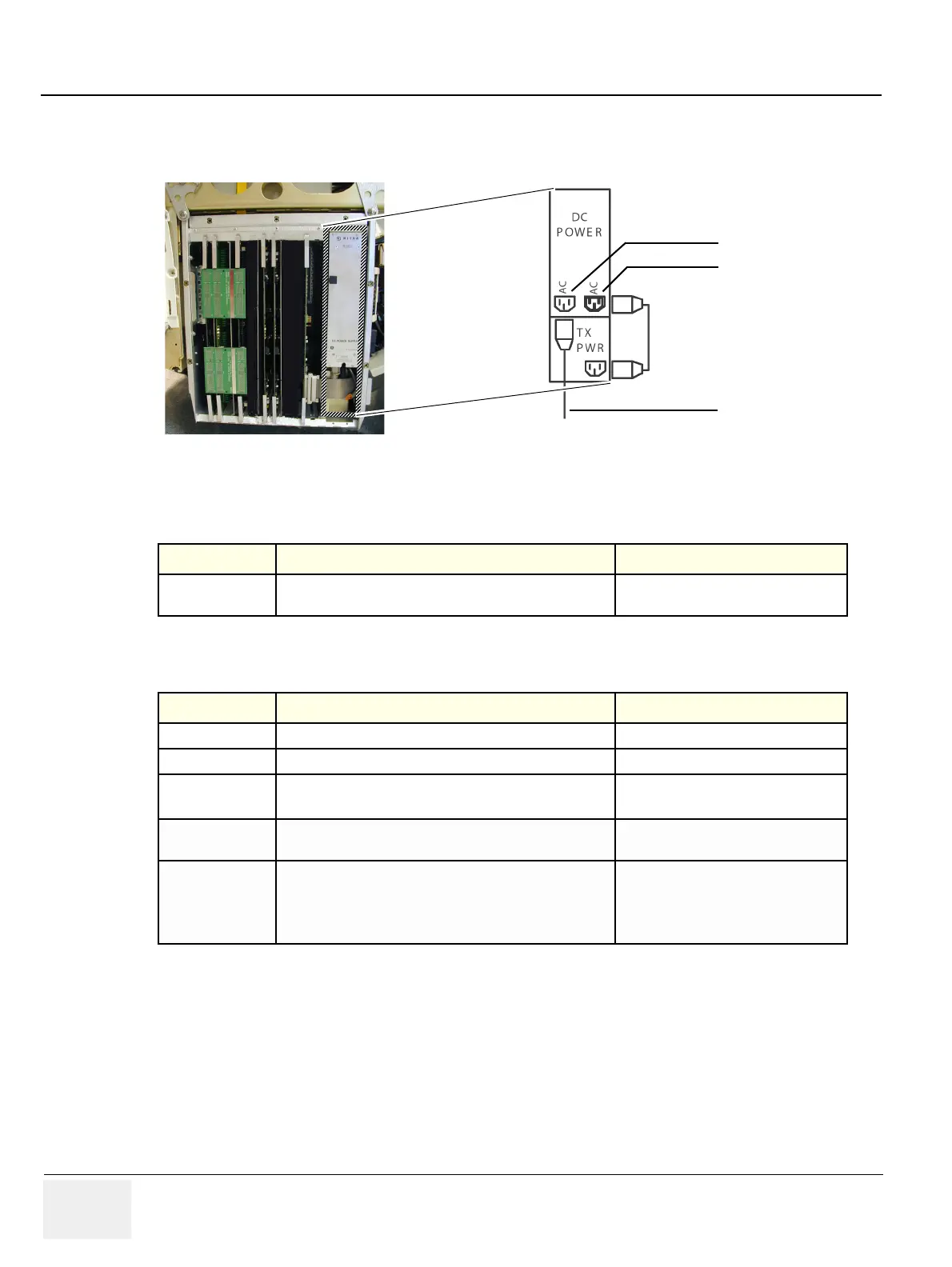

Figure 5-88 AC Voltage input to DC Power module
Table 5-86 Input, Plug P1, 230 VAC
INPUT DESCRIPTION CONNECTION FROM:
230 VAC AC Input via a three pin male (IEC) mains inlet
Cable from the AC Power Distribution
Box
Table 5-87 Sense and Control Signals, Plug P3 and P4
INPUT/OUTPUT DESCRIPTION CONNECTION FROM/TO:
+ 3.3 Sense Remote sense +3.3 V from Motherboard
- 3.3 Sense Remote sense -3.3 V from Motherboard
PS_ON*
Active low control signal used to turn the DC Power ON.
Controls the AC Power output to TX Power.
From: ON/OFF (Standby) key on
Operator Panel
SYNC. Not used
FEP1: FEC
FEP2: RFI
PWR_OK
Control signal.
Is high when the DC voltages are within specification.
Is low when power is on its way ON or OFF.
Used for control of AC Power output to TX Power.
P1
P2
Cable # 31-3
FROM AC POWER
