GE HEALTHCARE
DIRECTION FC091194, REVISION 11 VIVID 7 SERVICE MANUAL
7 - 10 Section 7-6 - Diagnostics Tools
7-6-3-1 Menu Bar Description
On top of the Service Interface Home Page, there is a menu bar where you can choose between several
service related sheets, see Figure 7-5.
The following choices are available on the manu bar:
• Error Logs
• Diagnostics
• Image Quality
• Calibration
• Configuration
• Utilities
• Replacement
•PM
•Home
7-6-3-2 Description of Screens
Each screen may include one or more "sub-screens". The next subsections describes the different
screens available.

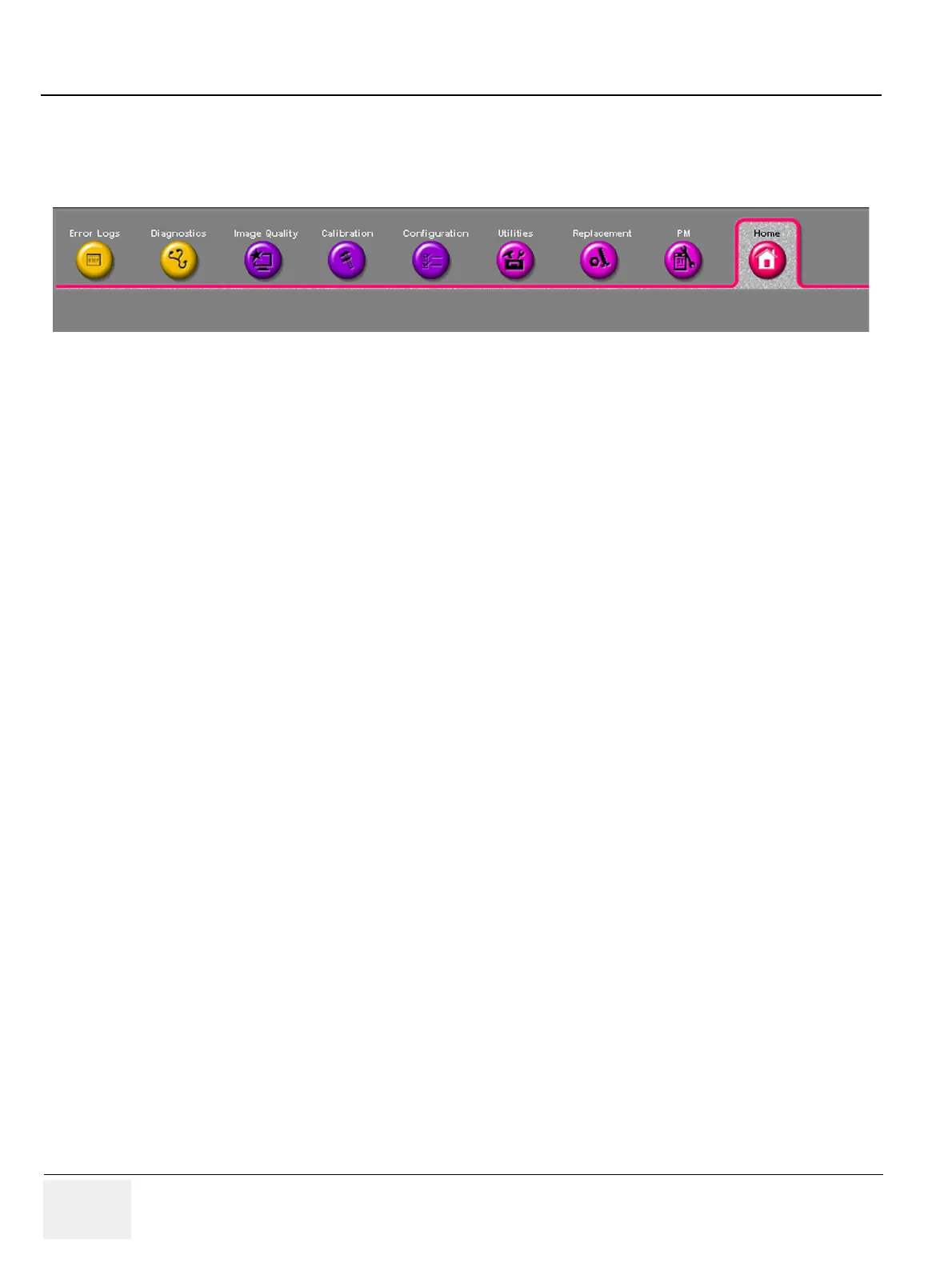

Figure 7-5 Service Interface Home Page
